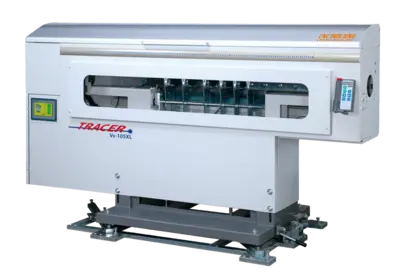

Tracer Vs-105XL (6') Short Bar Loader
Vs-105XL (6′) Servo Short Bar Loader VS-105XL - Designed to handle bar stock up to Ø105mm (4.13”) - Holds 5 bars at a time 6’ each at maximum bar diameter – up to 220 lbs. each bar - No manual adjustments needed when changing bar diameter - Rail retract system allows the bar feeder to move back and away at a 45° angle for convenient spindle liner changes and machine service access - Patented external LED light bar on the front of the magazine allows visual monitoring of bar status and alarms - Industry’s easiest to operate HMI touch-screen display with removeable remote control - Quick change pushers with no tools required – 3 pusher sizes included - Heavily built – weighing in at 1,540 lbs. The TRACER Vs-105XL is a heavy bar loader for heavy bars. It can handle up to 4.13″ diameter bars up to 73″ long. The bar feeder’s magazine rack has a maximum capacity of 5 bars at 4.13″ (105mm) diameter. The patented external LED light bar provides a visual status of pusher position, amount of bar remaining, notification of last bar, and flashing notification of machine or bar feeder alarms. This feature is standard on all CNC Indexing short loaders and magazine bar feeders. Our operator-friendly HMI display system is touch screen and contains automatic system settings and a removeable hand-held remote controller for convenience during operation. The quick change pusher is easily changed manually without any tools. No manual adjustments needed when changing bar diameter. The standard rail retract system allows the bar feeder to move back and away from the CNC lathe at a 45° angle for convenient spindle liner changes and access to the machine’s headstock area for ease of maintenance. The Vs-105XL’s PLC control is fully functional with comprehensive data bank software and perfectly interfaces with any CNC lathe.
Condition: new
Request A Quote
Tracer Vs-80L (5') Short Bar Loader
Vs-80L (5’) Servo Short Bar Loader - Up to 5’ Length Bars (actual bar length determined by lathe spindle length) - Bar Diameter capacity of 8mm to 80mm (0.315” – 3.15”) - Material can be round, hexagonal or square - Material can be uniform or random in length - Sub-spindle mode - Store Up to 100 different job settings with built in memory - Includes Three Pushers, Sliding Rail System and One Spindle Liner The TRACER Vs-80L is a compact magazine bar loader designed for loading larger diameter bar on CNC lathes. The Vs-80L positions with a servo driven, belt fed, closed loop encoder system. The Vs-80L feeds bar to a stop or a pre-set position. This model is ideal for use on lathes with a sub-spindle. Standard features include x-axis sliding rail system for easy spindle liner removal, large magazine tray to allow for unmanned production, hand held remote control for operator convenience, top-cut system to sense new bar position and easy v-channel adjustment for quick bar diameter changes.
Condition: new
Request A Quote

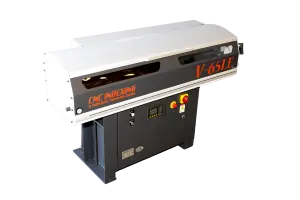

Tracer V-65LE (5') Short Bar Loader
Pneumatic Short Bar Loaders The TRACER V-65E and V-65LE pneumatic short bar loaders are economical solutions to achieving unmanned production runs. The V-65E and V-65LE load spindle length bar stock into the lathe spindle and will feed to a turret stop. These short bar loaders have a small footprint and are extremely versatile. Standard options include Top Cut System for automatically sensing a new bar position in the loader, and easy to access V Channel Adjustment Guide for changing bar diameters. TRACER pneumatic short bar loaders also come with a unique Rail Retract System that allows an operator to slide the loader back out of the way for easy spindle liner changes and accessibility to the lathe. All TRACER bar feeders and bar loaders come standard with our uniquely patented frontal LED Display permitting distant monitoring at a glance. The LED Display messages important information such as bar length, last bar, feeder error, and CNC lathe error. - Feeds to Turret Stop - Up to 4′ and 5’ Length Bars (actual bar length determined by lathe spindle length) - Bar Diameter capacity of 5mm to 65mm (0.25” – 2.56”) - Material can be Round, Hexagonal or Square - Material can be Uniform or Random in Length - External LED Display for Bar Position and Length Monitoring - Includes Three Pushers, Sliding Rail System and One Spindle Liner The TRACER V-65E and V-65LE are compact magazine bar loaders designed for CNC lathes. Both short bar loaders pneumatically feed to a turret stop. Standard features include x-axis sliding rail system for easy spindle liner removal, large magazine tray to allow for unmanned production, handheld remote control for operator convenience, top-cut system to sense new bar position and easy v-channel adjustment for bar size changes.
Condition: new
Request A Quote

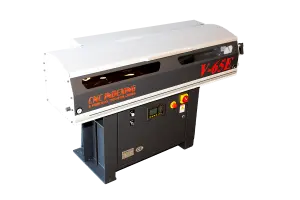

Tracer V-65E (4') Short Bar Loaders
Pneumatic Short Bar Loaders The TRACER V-65E and V-65LE pneumatic short bar loaders are economical solutions to achieving unmanned production runs. The V-65E and V-65LE load spindle length bar stock into the lathe spindle and will feed to a turret stop. These short bar loaders have a small footprint and are extremely versatile. Standard options include Top Cut System for automatically sensing a new bar position in the loader, and easy to access V Channel Adjustment Guide for changing bar diameters. TRACER pneumatic short bar loaders also come with a unique Rail Retract System that allows an operator to slide the loader back out of the way for easy spindle liner changes and accessibility to the lathe. All TRACER bar feeders and bar loaders come standard with our uniquely patented frontal LED Display permitting distant monitoring at a glance. The LED Display messages important information such as bar length, last bar, feeder error, and CNC lathe error. - Feeds to Turret Stop - Up to 4′ and 5’ Length Bars (actual bar length determined by lathe spindle length) - Bar Diameter capacity of 5mm to 65mm (0.25” – 2.56”) - Material can be Round, Hexagonal or Square - Material can be Uniform or Random in Length - External LED Display for Bar Position and Length Monitoring - Includes Three Pushers, Sliding Rail System and One Spindle Liner The TRACER V-65E and V-65LE are compact magazine bar loaders designed for CNC lathes. Both short bar loaders pneumatically feed to a turret stop. Standard features include x-axis sliding rail system for easy spindle liner removal, large magazine tray to allow for unmanned production, handheld remote control for operator convenience, top-cut system to sense new bar position and easy v-channel adjustment for bar size changes.
Condition: new
Request A Quote

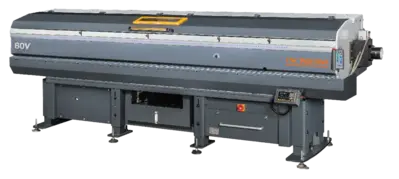

Tracer 80V - Hydrodynamic Magazine Bar Feeder
Hydrodynamic Magazine Bar Feeder for Fixed Headstock or Sliding Headstock CNC Lathes - Accepts up to 12′ long bar - Bar Diameter capacity of 5mm to 80mm (0.196″ – 3.149″) - Material can be Round, Hexigonal or Square - Material can be Uniform or Random in Length - Polyurethane guide channel design - Dual anti-vibration device (1 internal, 1 external) - External patented LED light display for monitoring bar status and alarms - Automatic remnant retract The TRACER V Series hydrodynamic magazine bar feeder models can be used on both fixed headstock and sliding headstock CNC lathes. Standard features include dual anti-vibration devices to minimize bar whip and guarantee high RPM turning, polyurethane guide channel design with improved vibration dampening and easier changeover, large magazine tray allowing for unmanned production, and hand held remote control for operator convenience.
Condition: new
Request A Quote
Tracer V65 - Hydrodynamic Magazine Bar Feeder
Hydrodynamic Magazine Bar Feeder for Fixed Headstock or Sliding Headstock CNC Lathes - Accepts up to 12′ long bar - Bar Diameter capacity of 5mm to 80mm (0.196″ – 3.149″) - Material can be Round, Hexigonal or Square - Material can be Uniform or Random in Length - Polyurethane guide channel design - Dual anti-vibration device (1 internal, 1 external) - External patented LED light display for monitoring bar status and alarms - Automatic remnant retract The TRACER V Series hydrodynamic magazine bar feeder models can be used on both fixed headstock and sliding headstock CNC lathes. Standard features include dual anti-vibration devices to minimize bar whip and guarantee high RPM turning, polyurethane guide channel design with improved vibration dampening and easier changeover, large magazine tray allowing for unmanned production, and hand held remote control for operator convenience.
Condition: new
Request A Quote
Tracer 51V - Hydrodynamic Magazine Bar Feeder
Hydrodynamic Magazine Bar Feeder for Fixed Headstock or Sliding Headstock CNC Lathes - Accepts up to 12′ long bar - Bar Diameter capacity of 5mm to 80mm (0.196″ – 3.149″) - Material can be Round, Hexigonal or Square - Material can be Uniform or Random in Length - Polyurethane guide channel design - Dual anti-vibration device (1 internal, 1 external) - External patented LED light display for monitoring bar status and alarms - Automatic remnant retract The TRACER V Series hydrodynamic magazine bar feeder models can be used on both fixed headstock and sliding headstock CNC lathes. Standard features include dual anti-vibration devices to minimize bar whip and guarantee high RPM turning, polyurethane guide channel design with improved vibration dampening and easier changeover, large magazine tray allowing for unmanned production, and hand held remote control for operator convenience.
Condition: new
Request A Quote
Tracer 32V - Hydrodynamic Magazine Bar Feeder
Hydrodynamic Magazine Bar Feeder for Fixed Headstock or Sliding Headstock CNC Lathes - Accepts up to 12′ long bar - Bar Diameter capacity of 5mm to 80mm (0.196″ – 3.149″) - Material can be Round, Hexigonal or Square - Material can be Uniform or Random in Length - Polyurethane guide channel design - Dual anti-vibration device (1 internal, 1 external) - External patented LED light display for monitoring bar status and alarms - Automatic remnant retract The TRACER V Series hydrodynamic magazine bar feeder models can be used on both fixed headstock and sliding headstock CNC lathes. Standard features include dual anti-vibration devices to minimize bar whip and guarantee high RPM turning, polyurethane guide channel design with improved vibration dampening and easier changeover, large magazine tray allowing for unmanned production, and hand held remote control for operator convenience.
Condition: new
Request A Quote
TRACER 20 - Hydrodynamic Magazine Bar Feeder
TRACER 20 (12′) Bar Feeder Hydrodynamic Magazine Bar Feeder for Fixed Headstock or Sliding Headstock CNC Lathes - Accepts up to 12′ long bar - Bar Diameter capacity of 3mm to 26mm (0.118″ – 1.023″) - Material can be Round, Hexagonal or Square - Material can be Uniform or Random in Length - Patented high wear resistance guide channel design with lifetime warranty - Dual anti-vibration device (1 internal, 1 external) - Front & rear external LED display for monitoring bar and bar feeder status - Automatic remnant retract - Right hand and left-hand versions available The TRACER 20 is a feature packed economically priced hydrodynamic magazine bar feeder that can be used on both fixed headstock and sliding headstock CNC lathes. It comes in both 6′ and 12′ versions. All CNC Indexing & Feeding Technologies bar feeders, including the TRACER 20, come with standard features that include: dual anti-vibration devices to minimize bar whip and guarantee high RPM turning, patented guide channel design with superior sound buffering effect to reduce noise, large magazine tray to allow for unmanned production and hand-held remote control for operator convenience. TRACER 20(12')
Condition: new
