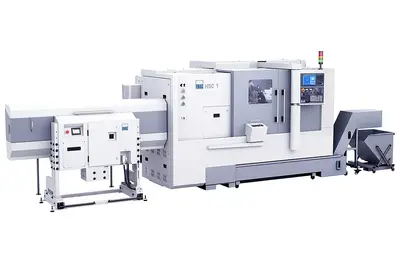

EMAG HSC1(Multi-Axis Lathe, 3-Axis Lathe or 2-Axis Lathe)
HSC 1 - CNC lathe for OP 10 / OP 20 production with maximum precision The HSC 1 is a compact, powerful CNC lathe for the economical machining of turned parts in two consecutive machining operations (OP 10 / OP 20). Equipped with main and counter spindles as well as a turret with driven tools, the machine enables turning, drilling and milling in a continuous production process - on a single machine. Automatic spindle transfer ensures high precision and efficient machining of both sides of the workpiece - no manual reclamping required. Milling operations using driven tools The turret with 12 stations (BMT-55) can be fully equipped with driven tools. These reach up to 5000 min-¹ and enable integrated milling operations, e.g. cross drilling, feather key grooves or thread milling - without the need for secondary machines. Full axis configuration incl. Y-axis In addition to the linear X, Y and Z axes, the HSC 1 features C axes on both spindles. The true Y-axis with ±50 mm travel significantly expands the machining spectrum: even off-center contours can be produced cost-effectively. The heavy, inclined bed base frame made of quality cast iron ensures low-vibration machining and optimal chip removal. Linear guides and preloaded ball screws guarantee dynamic movements with high positioning accuracy.
Condition: new
Request A Quote

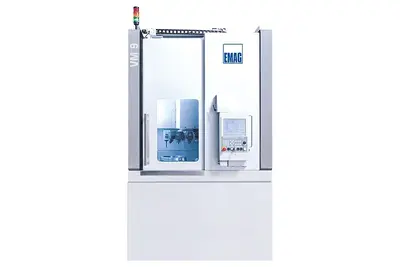

EMAG VL 9 Vertical Turning Machine
With the new VM 9 vertical turning center, EMAG has introduced a platform that covers a broad spectrum of applications thanks to the combined turning, milling and drilling technologies and intelligent machine design. The highly accessible machining area and workpiece spindle fitted at the bottom ensure short tooling times and maximum flexibility in the production of large components. - Workpiece dia., max.: 400 mm | 15.5 in - Workpiece length, max.: 350 mm | 14 in - Chuck dia., max.: 450 mm | 17.5 in
Condition: new
Request A Quote

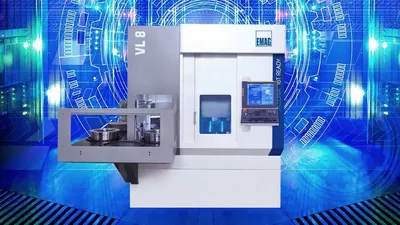

EMAG VL 8 Vertical Turning Machine
With the VL 8 vertical pick-up turning machine EMAG makes the advantages of its VL series available for large parts as well. The automation system integrated into the turning machines guarantees rapid processing, while the stable basic structure of the machine ensures top quality in turning and milling. The vertical design likewise contributes to the high machining quality, as it virtually eliminates all effects of chips generated during machining. - Workpiece dia., max.: 400 mm | 15.5 in - Workpiece length, max.: 300 mm | 12 in - Chuck dia., max.: 500 mm | 19.5 in
Condition: new
Request A Quote

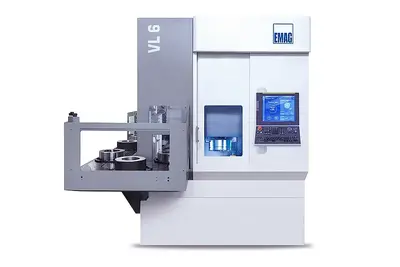

EMAG VL 6 Vertical Turning Machine
The VL 6 vertical lathe machine offers the same features as the newest EMAG modular designs in a vertical turning machine for larger, heavy workpieces. Equipped with a standard workpiece conveyor and pick-up spindle, the cnc lathe machine loads itself with minimized chip-to-chip times. With a machine base made of the polymer concrete MINERALIT®, a material well-known for its excellent damping quality, it offers extended tool life and outstanding surface finishes. - Workpiece dia., max.: 300 mm | 12 in - Workpiece length, max.: 250 mm | 10 in - Chuck dia., max.: 400 mm | 15.5 in
Condition: new
Request A Quote

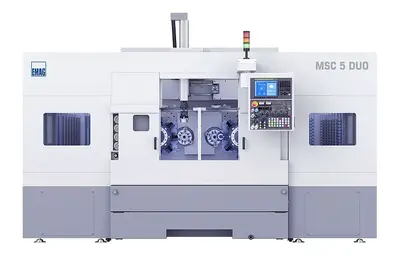

EMAG MSC5 DUO/ 240 CNC Turning Center
The MSC 5 DUO is a twin-spindle CNC lathe engineered for high-performance batch production. With its innovative split-bed design, powerful spindles and fully integrated 3-axis gantry loader, this machine delivers exceptional precision, reliability and efficiency. Whether in automotive, hydraulics, pneumatics or medical component production, the MSC 5 DUO ensures faster cycle times, reduced downtime and superior machining results. - Turning diameter, max.: 120 / 240 mm | 4.5 / 9.5 in - Maximum turning length: 85 / 145 mm | 3.5 / 5.5 in - X-axis travel: 130 mm | 5 in
Condition: new
Request A Quote

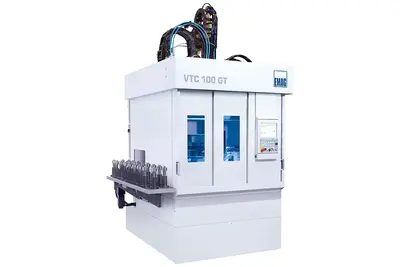

EMAG VTC100 GT Vertical Turning & Grinding Center - Small Shaft
The VTC 100 GT turning and grinding machine ensures fast cycles for hard turning and grinding. The tool turret completes all turning operations, while the grinding takes place at a second station. Thus, the VTC 100 GT multi-functional machine is the perfect production tool for the complete machining of cylindrical bearing seats or shoulders and grooves, for example. Machined in a single clamping, true running errors resulting from separate clamping operations are reduced. Important to note is that the component may be changed at any time. VTC 100 GT machines can be quickly reconfigured for evolving machining tasks. Even complex combination processes can be configured extremely efficiently on the EMAG turning and grinding combination machine. - Workpiece dia., max.: 100 mm | 4 in - Workpiece length, max.: 400 mm | 15.5 in - Chuck dia., max.: 210 mm | 8.5 in
Condition: new
Request A Quote

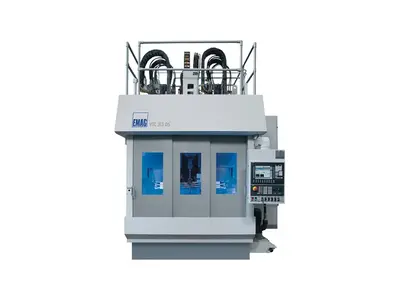

EMAG VTC315 DS Vertical Turning & Grinding Center - Shafts
With the VTC 315 DS machine, EMAG provides vertical and simultaneous shaft grinding. In contrast to the standard method, this CNC machine holds the workpiece vertically for simultaneous, four-axis machining by two opposing grinding spindles. The normal forces are canceled out and grinding times for components such as gear shafts with multiple bearing seats can be drastically reduced. When used for synchronous support grinding, the resulting tangential forces that act on the shaft are absorbed by a movable support axis, so even thin workpieces with high infeed rates can be machined. Both turning and grinding technologies can be used on the VTC 315 DS. The turret can perform turning and milling operations while grinding is located at the second station. Complete shaft production is made possible with cylindrical bearing seats, shoulders and grooves all machined in a single setup. Runout errors are drastically reduced in comparison with machining in separate setups. As an extremely fast hard machining method, EMAG scroll-free turning ensures maximum productivity for workpieces up to 700 mm in size. Thanks to scroll-free turning, the multi-functional machine enables seal seat machining with the crucial requirement of no tool marks. Dry machining is also possible. - Workpiece dia., max.: 240 mm | 9.5 in - Workpiece length, max.: 700 mm | 27.5 in - Chuck dia., max.: 315 mm | 12.5 in
Condition: new
Request A Quote

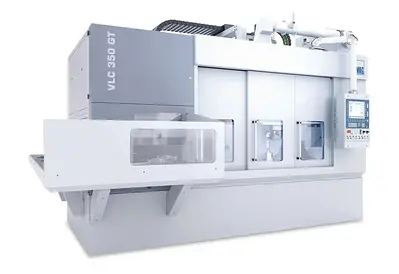

EMAG VLC350 GT Vertical Turning & Grinding Center
The abbreviation “GT” stands for “grinding” and “turning.” It signifies the main strengths of the VLC GT machine: The combination of grinding and turning (and additional processes) with EMAG's proven pick-up automation system allows for countless manufacturing solutions. The VLC 350 GT turning/grinding machine is larger than the VLC 200 GT, and designed for components with a maximum diameter of 350 mm (14 in). For the first time ever, there is the option of integrating a grinding spindle with an NC swiveling axis. This can hold, for example, a cylindrical grinding element for grinding internal boreholes. The VLC 350 GT turning/grinding machine is also perfect for small batch production. The machine has enough space in its machining area to accommodate a variety of different grinding spindles, right from the start to save time in retooling. - Workpiece dia., max.: 350 mm | 14 in - Workpiece length, max.: 200 mm | 8 in - Chuck dia., max.: 400 mm | 15.5 in
Condition: new
Request A Quote

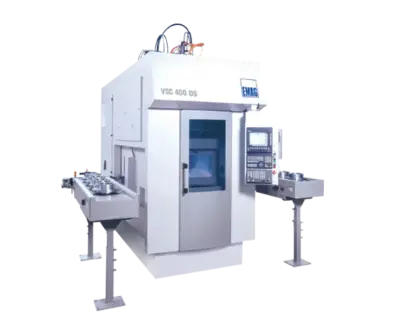

EMAG VSC DS/DDS Vertical Turning & Grinding Center
Vertical turning and grinding – a solution that has it all. The combined turning and grinding centers VSC 250 DS, VSC 400 DS and VSC 400 DDS combine the advantages of vertical hard turning with the advantages of grinding, on a single machine, in a single set-up. Depending on production requirements the turning and grinding center VSC DS can be equipped with turning, milling, drilling, grinding and even honing or hardening modules. It could also use combinations of them, of course. For each requirement the best possible technology is available. Complete production processes with the turning and grinding center VSC DS. The turning and grinding center VSC DS is specifically designed for the low-cost, process capable, precision machining of medium to large component batches. Typical examples of such workpieces are: gearwheels, chain wheels, sliding sleeves, parts for CVTs, link pins, conrods, rocker arms, bearing rings and piston rings. - Chuck dia., max.: 250 / 400 mm | 10 / 15.5 in - Swing diameter: 250 / 420 mm | 10 / 16.5 in - X-axis travel: 685 / 850 mm | 27 / 33.5
Condition: new
