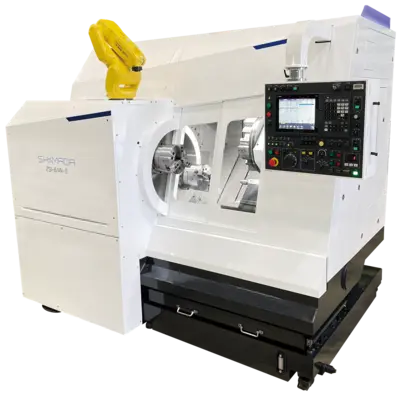

SHIMADA-KITAKO 2SI-8 MK-II MY Multi-Spindle Horizontal Lathe
The Shimada–Kitako 2SI MK-II Series consists of twin-spindle, single-turret CNC lathes that allow concurrent machining on both ends of a workpiece. This configuration virtually eliminates spindle idle time by enabling front-side (OP10) and back-side (OP20) operations to run simultaneously. Loading time is reduced to zero, as one spindle performs machining while the other handles loading/unloading—significantly boosting overall productivity and efficiency. Once both operations are complete, the turret drum indexes 180°, and the previously idle spindle begins machining. The 2SI Series can be configured with 6″, 8″, or 10″ chucks on both spindles. Uniquely, the 2SI-8 MK-II machine is designed with an 8″ chuck but can be adapted to handle a 10″ chuck if the application justifies and clearance and space is evaluated. This flexibility also allows for an asymmetric setup—featuring an 8″ chuck on one spindle and a 10″ chuck on the other—offering added flexibility for different part sizes. Complex, multi-axis, and multi-tasking operations are made possible with the integration of a Y-axis, tailstock, and driven tools (live tooling), effectively transforming the lathe into a compact mill-turn center. To support affordability and ease of use, the 2SI Series is designed with externally mounted chucks, located outside the machine’s partition door. This design allows for quick manual setups and also facilitates automation. The machine footprint accommodates direct integration of robotic arms without requiring additional floor space. The 2SI Series can also be equipped with a wide range of automation options, including: pusher devices, part length detectors, feeders, chip conveyors, rotary tables, stockers, hopper/lifters, pallet changers, external measurement systems, part reversers, vision inspection, and coolant/air blow-off kits.
Condition: new
Request A Quote
SHIMADA Kitako 2SI-8 MK-II Multi-Spindle Horizontal Lathe
The Shimada–Kitako 2SI MK-II Series consists of twin-spindle, single-turret CNC lathes that allow concurrent machining on both ends of a workpiece. This configuration virtually eliminates spindle idle time by enabling front-side (OP10) and back-side (OP20) operations to run simultaneously. Loading time is reduced to zero, as one spindle performs machining while the other handles loading/unloading—significantly boosting overall productivity and efficiency. Once both operations are complete, the turret drum indexes 180°, and the previously idle spindle begins machining. The 2SI Series can be configured with 6″, 8″, or 10″ chucks on both spindles. Uniquely, the 2SI-8 MK-II machine is designed with an 8″ chuck but can be adapted to handle a 10″ chuck if the application justifies and clearance and space is evaluated. This flexibility also allows for an asymmetric setup—featuring an 8″ chuck on one spindle and a 10″ chuck on the other—offering added flexibility for different part sizes. Complex, multi-axis, and multi-tasking operations are made possible with the integration of a Y-axis, tailstock, and driven tools (live tooling), effectively transforming the lathe into a compact mill-turn center. To support affordability and ease of use, the 2SI Series is designed with externally mounted chucks, located outside the machine’s partition door. This design allows for quick manual setups and also facilitates automation. The machine footprint accommodates direct integration of robotic arms without requiring additional floor space. The 2SI Series can also be equipped with a wide range of automation options, including: pusher devices, part length detectors, feeders, chip conveyors, rotary tables, stockers, hopper/lifters, pallet changers, external measurement systems, part reversers, vision inspection, and coolant/air blow-off kits.
Condition: new
Request A Quote
SHIMADA Kitako 2SI-8 Multi-Spindle Horizontal Lathe
The Shimada–Kitako 2SI MK-II Series consists of twin-spindle, single-turret CNC lathes that allow concurrent machining on both ends of a workpiece. This configuration virtually eliminates spindle idle time by enabling front-side (OP10) and back-side (OP20) operations to run simultaneously. Loading time is reduced to zero, as one spindle performs machining while the other handles loading/unloading—significantly boosting overall productivity and efficiency. Once both operations are complete, the turret drum indexes 180°, and the previously idle spindle begins machining. The 2SI Series can be configured with 6″, 8″, or 10″ chucks on both spindles. Uniquely, the 2SI-8 MK-II machine is designed with an 8″ chuck but can be adapted to handle a 10″ chuck if the application justifies and clearance and space is evaluated. This flexibility also allows for an asymmetric setup—featuring an 8″ chuck on one spindle and a 10″ chuck on the other—offering added flexibility for different part sizes. Complex, multi-axis, and multi-tasking operations are made possible with the integration of a Y-axis, tailstock, and driven tools (live tooling), effectively transforming the lathe into a compact mill-turn center. To support affordability and ease of use, the 2SI Series is designed with externally mounted chucks, located outside the machine’s partition door. This design allows for quick manual setups and also facilitates automation. The machine footprint accommodates direct integration of robotic arms without requiring additional floor space. The 2SI Series can also be equipped with a wide range of automation options, including: pusher devices, part length detectors, feeders, chip conveyors, rotary tables, stockers, hopper/lifters, pallet changers, external measurement systems, part reversers, vision inspection, and coolant/air blow-off kits.
Condition: new
Request A Quote
SHIMADA Kitako 2SI-6 Multi-Spindle Horizontal Lathe
View full gallery The Shimada–Kitako 2SI MK-II Series consists of twin-spindle, single-turret CNC lathes that allow concurrent machining on both ends of a workpiece. This configuration virtually eliminates spindle idle time by enabling front-side (OP10) and back-side (OP20) operations to run simultaneously. Loading time is reduced to zero, as one spindle performs machining while the other handles loading/unloading—significantly boosting overall productivity and efficiency. Once both operations are complete, the turret drum indexes 180°, and the previously idle spindle begins machining. The 2SI Series can be configured with 6″, 8″, or 10″ chucks on both spindles. Uniquely, the 2SI-8 MK-II machine is designed with an 8″ chuck but can be adapted to handle a 10″ chuck if the application justifies and clearance and space is evaluated. This flexibility also allows for an asymmetric setup—featuring an 8″ chuck on one spindle and a 10″ chuck on the other—offering added flexibility for different part sizes. Complex, multi-axis, and multi-tasking operations are made possible with the integration of a Y-axis, tailstock, and driven tools (live tooling), effectively transforming the lathe into a compact mill-turn center. To support affordability and ease of use, the 2SI Series is designed with externally mounted chucks, located outside the machine’s partition door. This design allows for quick manual setups and also facilitates automation. The machine footprint accommodates direct integration of robotic arms without requiring additional floor space. The 2SI Series can also be equipped with a wide range of automation options, including: pusher devices, part length detectors, feeders, chip conveyors, rotary tables, stockers, hopper/lifters, pallet changers, external measurement systems, part reversers, vision inspection, and coolant/air blow-off kits.
Condition: new
Request A Quote

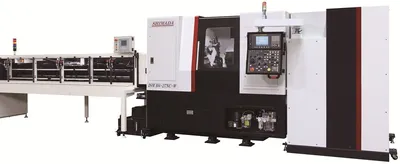

SHIMADA Kitako ISM B6-32 Multi-Spindle Horizontal Lathe
Shimada’s Kitako ISM B6 Series includes four models of camless, 6-spindle horizontal automatic lathes, each supporting up to three CNC-controlled 2-axis slides, enabling synchronized 6-axis control for advanced process flexibility. This series merges the high-speed productivity of traditional automatics with the precision, rapid setup, and programmability of CNC systems, making it ideal for either just-in-time manufacturing or lights-out operations. Standard features include your choice of either an IEMCA or Pietro Cucchi compact side-mounted automatic bar feeder, remnant ejection system, and quick-change tooling. The spindle carrier indexes 60° between cycles, allowing all six spindles to perform machining operations in sequence. While each spindle completes a different phase of the part process, loading/unloading is performed concurrently, ensuring continuous operation with minimal idle time. There are 4 types of B6 Series models to choose from: B6-16, 27, and 32: No CNC slides B6-16: Bar capacities ranging from 0.157″ to 0.629″ (4 – 16 mm) and up to 3 slides for small diameter workpieces B6-27: Bar capacities ranging from 0.393″ to 1.06″ (10 – 27 mm) and up to 3 slides for medium diameter workpieces B6-32: Bar capacities ranging from 0.551″ to 1.26″ (14 – 32 mm) and up to 3 slides for large diameter workpieces
Condition: new
Request A Quote
SHIMADA Kitako ISM B6-27 Multi-Spindle Horizontal Lathe
Shimada’s Kitako ISM B6 Series includes four models of camless, 6-spindle horizontal automatic lathes, each supporting up to three CNC-controlled 2-axis slides, enabling synchronized 6-axis control for advanced process flexibility. This series merges the high-speed productivity of traditional automatics with the precision, rapid setup, and programmability of CNC systems, making it ideal for either just-in-time manufacturing or lights-out operations. Standard features include your choice of either an IEMCA or Pietro Cucchi compact side-mounted automatic bar feeder, remnant ejection system, and quick-change tooling. The spindle carrier indexes 60° between cycles, allowing all six spindles to perform machining operations in sequence. While each spindle completes a different phase of the part process, loading/unloading is performed concurrently, ensuring continuous operation with minimal idle time. There are 4 types of B6 Series models to choose from: B6-16, 27, and 32: No CNC slides B6-16: Bar capacities ranging from 0.157″ to 0.629″ (4 – 16 mm) and up to 3 slides for small diameter workpieces B6-27: Bar capacities ranging from 0.393″ to 1.06″ (10 – 27 mm) and up to 3 slides for medium diameter workpieces B6-32: Bar capacities ranging from 0.551″ to 1.26″ (14 – 32 mm) and up to 3 slides for large diameter workpieces
Condition: new
Request A Quote
SHIMADA Kitako ISM B6 Multi-Spindle Horizontal Lathe
Shimada’s Kitako ISM B6 Series includes four models of camless, 6-spindle horizontal automatic lathes, each supporting up to three CNC-controlled 2-axis slides, enabling synchronized 6-axis control for advanced process flexibility. This series merges the high-speed productivity of traditional automatics with the precision, rapid setup, and programmability of CNC systems, making it ideal for either just-in-time manufacturing or lights-out operations. Standard features include your choice of either an IEMCA or Pietro Cucchi compact side-mounted automatic bar feeder, remnant ejection system, and quick-change tooling. The spindle carrier indexes 60° between cycles, allowing all six spindles to perform machining operations in sequence. While each spindle completes a different phase of the part process, loading/unloading is performed concurrently, ensuring continuous operation with minimal idle time. There are 4 types of B6 Series models to choose from: B6-16, 27, and 32: No CNC slides B6-16: Bar capacities ranging from 0.157″ to 0.629″ (4 – 16 mm) and up to 3 slides for small diameter workpieces B6-27: Bar capacities ranging from 0.393″ to 1.06″ (10 – 27 mm) and up to 3 slides for medium diameter workpieces B6-32: Bar capacities ranging from 0.551″ to 1.26″ (14 – 32 mm) and up to 3 slides for large diameter workpieces
Condition: new
Request A Quote

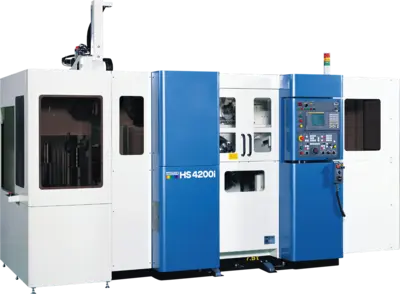

SHIMADA Kitako HS4200 Series Multi-Spindle Horizontal Lathe
Shimada’s Kitako HS4200 Series consists of 4-spindle, 2-turret (2NC) CNC horizontal lathes, offered in five distinct models. Built for high-output production, the machines utilize a spindle indexing drum that rotates 180°, allowing two spindles to machine while the other two are loaded/unloaded results in achieving a near-zero idle time. The dual-turret configuration enables simultaneous or balanced machining on both ends of the workpiece. The HS4200 series is automation-ready, with options for directly mounted robots or gantry-style loaders, maximizing throughput while maintaining a compact footprint. There are 5 types of HS4200 Series models to choose from: HS4200i: Basic model with standard high-speed gantry loader HS4200iM: Basic model with standard high-speed gantry loader and live tooling HS4200n: Basic model with robot-ready mount HS4200M: Basic model with live tooling HS4200T: Basic model with tailstock
Condition: new
