NEXTURN SA-45XIII Swiss Type Lathe
The SA XIII series of Nexturn Swiss CNC lathes consists of three models with or without rotary synchronous guide bushings. The XIII series is equipped with an opposing gang tooling system holding a maximum of 14 live tools for high productivity when machining complex parts. Use of guide bushings permits turning of longer parts, while machines without guide bushings are ideal for processing short parts and cold drawn material. The machines feature up to 11 axes and up to 29 total tools. Maximum bar diameter capacity of the main and sub spindles is 32mm – 45mm, depending on machine size. Maximum turning lengths are 120mm – 279mm. Main spindles and sub spindles provide as much as 20 HP (15kW) at speeds as high as 8,000 RPM while offering full C-axis capability. The synchronous sub-spindle permits simultaneous front and backworking. Live tools provide 1.3 HP (1 kW) and 6,000 RPM. Rigid tapping is standard. Excellent rigidity results from the use of FEA technology in machine structure design. The slant-bed Nexturn machines maximize ease of use with ergonomically arranged controls and fully opening covers and doors. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote
NEXTURN SA-12B Swiss Type Lathe
Nexturn SA(B) Swiss CNC lathe series represent a cost efficient and productive 7-axis machine for complex precision parts. Three models feature synchronous guide bushings, 7 machining axes and as many as 22 tools to handle maximum bar diameters of 12mm, 20mm and 32mm. Maximum turning lengths are 6.3″ on the 12mm machine and 8″ on the 20mm and 32mm models. Built-in motor on main spindles range from 3 – 10 HP and maximum RPM capacity up to 10,000 RPMs, while sub-spindles offer 1.5 – 3 HP and up to at 10,000 RPMs. Both spindles have full C-axis with .001° positioning. Powerful live tools, operating at 1.3 HP and 6,000 RPMs allow for complex milling operations. Excellent rigidity results from the use of FEA technology in the one-piece bed casting design. The machine design maximizes ease of use with ergonomically arranged controls and fully opening covers and doors. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote
NEXTURN SA-20B Swiss Type Lathe
Nexturn SA(B) Swiss CNC lathe series represent a cost efficient and productive 7-axis machine for complex precision parts. Three models feature synchronous guide bushings, 7 machining axes and as many as 22 tools to handle maximum bar diameters of 12mm, 20mm and 32mm. Maximum turning lengths are 6.3″ on the 12mm machine and 8″ on the 20mm and 32mm models. Built-in motor on main spindles range from 3 – 10 HP and maximum RPM capacity up to 10,000 RPMs, while sub-spindles offer 1.5 – 3 HP and up to at 10,000 RPMs. Both spindles have full C-axis with .001° positioning. Powerful live tools, operating at 1.3 HP and 6,000 RPMs allow for complex milling operations. Excellent rigidity results from the use of FEA technology in the one-piece bed casting design. The machine design maximizes ease of use with ergonomically arranged controls and fully opening covers and doors. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote
NEXTURN SA-32B Swiss Type Lathe
Nexturn SA(B) Swiss CNC lathe series represent a cost efficient and productive 7-axis machine for complex precision parts. Three models feature synchronous guide bushings, 7 machining axes and as many as 22 tools to handle maximum bar diameters of 12mm, 20mm and 32mm. Maximum turning lengths are 6.3″ on the 12mm machine and 8″ on the 20mm and 32mm models. Built-in motor on main spindles range from 3 – 10 HP and maximum RPM capacity up to 10,000 RPMs, while sub-spindles offer 1.5 – 3 HP and up to at 10,000 RPMs. Both spindles have full C-axis with .001° positioning. Powerful live tools, operating at 1.3 HP and 6,000 RPMs allow for complex milling operations. Excellent rigidity results from the use of FEA technology in the one-piece bed casting design. The machine design maximizes ease of use with ergonomically arranged controls and fully opening covers and doors. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote
NEXTURN SA-51XII Swiss Type Lathe
The SA(XII) series of Nexturn Swiss CNC lathes consists of five models with or without rotary synchronous guide bushings. An optional continuous swiveling 135˚ B-axis permits variable angle machining up to 10 front and 8 back-side live tools. Use of guide bushings permits turning of longer parts, while machines without guide bushings are ideal for processing short parts and cold drawn material. The machines feature up to 8 axes and up to 29 total tools, increasing to 9 axes with the B-axis. Maximum bar diameter capacity of the main and sub spindles is 20mm – 51mm, depending on machine size. Maximum turning lengths are 118 mm – 275mm. Main and sub spindles provide as much as 20 HP (15kW) at speeds as high as 8,000 RPM while offering full C-axis capability. The synchronous sub-spindle permits simultaneous front and back working. Live tools provide 1.3 HP (1 kW) – 3 HP (3.3 kW) and 6,000 RPM. Rigid tapping is standard. Excellent rigidity results from the use of FEA technology in machine structure design. The slant-bed machines maximize ease of use with ergonomically arranged controls and fully opening covers and doors. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote
NEXTURN SA-32XIII Swiss Type Lathe
The SA XIII series of Nexturn Swiss CNC lathes consists of three models with or without rotary synchronous guide bushings. The XIII series is equipped with an opposing gang tooling system holding a maximum of 14 live tools for high productivity when machining complex parts. Use of guide bushings permits turning of longer parts, while machines without guide bushings are ideal for processing short parts and cold drawn material. The machines feature up to 11 axes and up to 29 total tools. Maximum bar diameter capacity of the main and sub spindles is 32mm – 45mm, depending on machine size. Maximum turning lengths are 120mm – 279mm. Main spindles and sub spindles provide as much as 20 HP (15kW) at speeds as high as 8,000 RPM while offering full C-axis capability. The synchronous sub-spindle permits simultaneous front and backworking. Live tools provide 1.3 HP (1 kW) and 6,000 RPM. Rigid tapping is standard. Excellent rigidity results from the use of FEA technology in machine structure design. The slant-bed Nexturn machines maximize ease of use with ergonomically arranged controls and fully opening covers and doors. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote
NEXTURN SA-38XIII Swiss Type Lathe
The SA XIII series of Nexturn Swiss CNC lathes consists of three models with or without rotary synchronous guide bushings. The XIII series is equipped with an opposing gang tooling system holding a maximum of 14 live tools for high productivity when machining complex parts. Use of guide bushings permits turning of longer parts, while machines without guide bushings are ideal for processing short parts and cold drawn material. The machines feature up to 11 axes and up to 29 total tools. Maximum bar diameter capacity of the main and sub spindles is 32mm – 45mm, depending on machine size. Maximum turning lengths are 120mm – 279mm. Main spindles and sub spindles provide as much as 20 HP (15kW) at speeds as high as 8,000 RPM while offering full C-axis capability. The synchronous sub-spindle permits simultaneous front and backworking. Live tools provide 1.3 HP (1 kW) and 6,000 RPM. Rigid tapping is standard. Excellent rigidity results from the use of FEA technology in machine structure design. The slant-bed Nexturn machines maximize ease of use with ergonomically arranged controls and fully opening covers and doors. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote
NEXTURN SA-38PYII Swiss Type Lathe
The Nexturn SA(PYII) Swiss CNC lathe series are our high-level machines featuring an exchangeable guide bushing Removing the guide bushing for short parts keeps remnant length to a minimum with a maximum turn length of 60mm, and allows the use of non-ground bar stock. The guide bushing, for longer parts utilizing ground bar stock, allows maximum turning length up to 210mm. The PYII series features 8 axes and 4 different models from 20mm to 38mm bar capacity. The SA(PYII) features a total of 8 axes (Z1, X1, Y1, Z2, X2, Y2, C1, and C2) and up to 27 total tools. Bar capacity is 20/26/32/38mm. High precision integral motor spindles on both main and sub provide excellent precision and fast cycle times. The machine is built for rigidity, accuracy, reliability, and ease of use. The highly rigid one-piece cast iron machine bed is designed using FEM software. Powerful motors for both turning and milling deliver outstanding machining capability. The use of ultra-precision pre-tensioned ballscrews and LM guides produce high accuracy. High speed positioning of 1260”/min. reduces cycle times. A sliding operators door, as opposed to a lift up style door, provides easy access to the machining area and is drip free. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A Quote

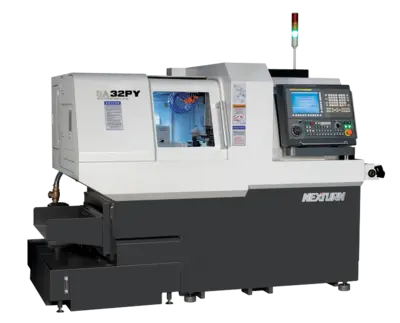

NEXTURN SA32PYII Swiss Type Lathe
The Nexturn SA(PYII) Swiss CNC lathe series are our high-level machines featuring an exchangeable guide bushing Removing the guide bushing for short parts keeps remnant length to a minimum with a maximum turn length of 60mm, and allows the use of non-ground bar stock. The guide bushing, for longer parts utilizing ground bar stock, allows maximum turning length up to 210mm. The PYII series features 8 axes and 4 different models from 20mm to 38mm bar capacity. The SA(PYII) features a total of 8 axes (Z1, X1, Y1, Z2, X2, Y2, C1, and C2) and up to 27 total tools. Bar capacity is 20/26/32/38mm. High precision integral motor spindles on both main and sub provide excellent precision and fast cycle times. The machine is built for rigidity, accuracy, reliability, and ease of use. The highly rigid one-piece cast iron machine bed is designed using FEM software. Powerful motors for both turning and milling deliver outstanding machining capability. The use of ultra-precision pre-tensioned ballscrews and LM guides produce high accuracy. High speed positioning of 1260”/min. reduces cycle times. A sliding operators door, as opposed to a lift up style door, provides easy access to the machining area and is drip free. Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements. - B Series 7-Axis Industry-Leading Efficient Model with 22 Tools - PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles - PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing - XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing - XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
Condition: new
Request A QuoteQuestions?
