NILES-SIMMONS RMC Vertical Turning Center
Manufacturer: NILES-SIMMONS
Model: RMC
Asset Type: 58892
Year: Not Specified
Condition: new
Stock Number: Not Specified
Status: For Sale
new

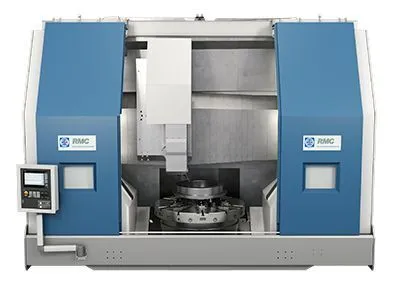

Niles-Simmons Vertical Turning Center RMC
The modular design of the RQ series combines a high cutting force with high precision machining that can be used for all types of railway wheels as well as ring-shaped, difficult-to-cut workpieces from the aerospace and bearing industries. The RMC model is equipped with a turning/milling unit for the machining of rotationally symmetric workpieces.
Added value:
- Machine for finishing and complete machining
- Ultimate precision thanks to direkt measuring systems in all linear and rotary axes
- Integrated tool and workpiece measuring
- Multi-Task Tools
- Extandable tool magazine
Request Quote
The modular design of the RQ series combines a high cutting force with high precision machining that can be used for all types of railway wheels as well as ring-shaped, difficult-to-cut workpieces from the aerospace and bearing industries. The RMC model is equipped with a turning/milling unit for the machining of rotationally symmetric workpieces.
Added value:
- Machine for finishing and complete machining
- Ultimate precision thanks to direkt measuring systems in all linear and rotary axes
- Integrated tool and workpiece measuring
- Multi-Task Tools
- Extandable tool magazine

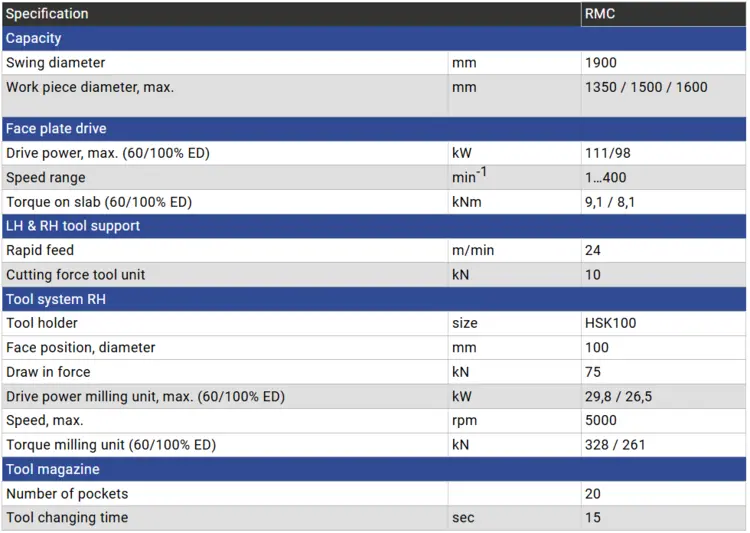

Specifications | |
|---|---|
| Live Tooling | Yes |
| Distance | |
| Swing | 1900.0 mm |
| Turning Dia | 1600.0 mm |
| Mechanical power | |
| Power | 111.0 kw |
| Rotational speed | |
| Max RPM | 400.0 rpm |
