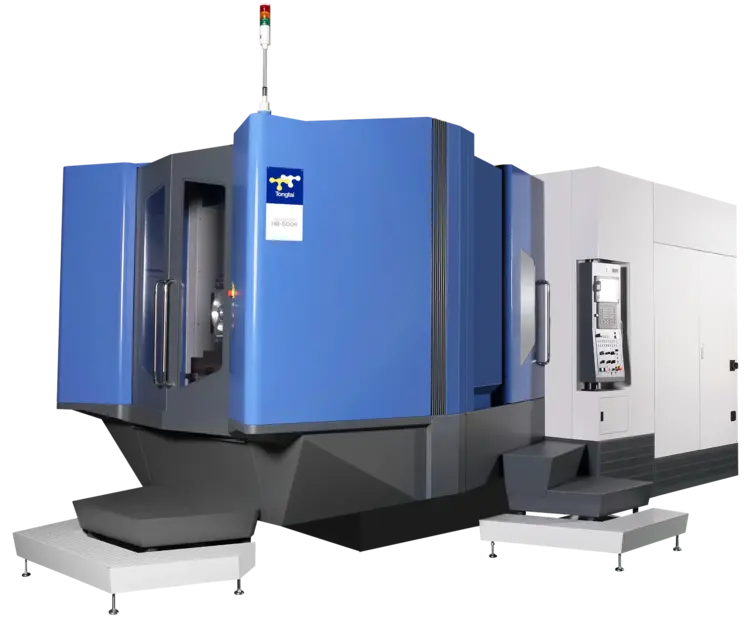

TONGTAI HB-500II (Horizontal Machining center)
Manufacturer: TONGTAI
Model: HB-500II
Asset Type: 48896
Year: Not Specified
Condition: new
Stock Number: Not Specified
Status: For Sale
new
High efficiency machining
HB-5001l has excellent appearance and friendly human-machine interface. It improves machining efficiency by decreasing non-cutting time and
becomes a high cost-performance rate machine.
High torque & power spindle
10,000 rpm build-in spindle is equipped with high power 25/30 kW and
high torque 420 Nm as standard. This spindle is suitable for machining
materials of aluminum alloy, cast iron and steel. HB-5001l is applied mainly
in the industries of automobile, construction machinery, agriculture
machinery and general parts.
Request Quote
HB-5001l has excellent appearance and friendly human-machine interface. It improves machining efficiency by decreasing non-cutting time and
becomes a high cost-performance rate machine.
High torque & power spindle
10,000 rpm build-in spindle is equipped with high power 25/30 kW and
high torque 420 Nm as standard. This spindle is suitable for machining
materials of aluminum alloy, cast iron and steel. HB-5001l is applied mainly
in the industries of automobile, construction machinery, agriculture
machinery and general parts.
Specifications | |
|---|---|
| # ATC | 60.0 |
| Taper | BT50 |
| # Axis | 4.0 |
| Distance | |
| X | 800.0 mm |
| Y | 710.0 mm |
| Z | 710.0 mm |
| Pallet-W | 500.0 mm |
| Pallet-L | 500.0 mm |
| Mechanical power | |
| Power | 22.0 kw |
| Rotational speed | |
| RPM | 10000.0 rpm |
