EMAG GW 3600 H Gear Grinding Machine
Manufacturer: EMAG
Model: GW 3600 H
Asset Type: 58800
Year: Not Specified
Condition: new
Stock Number: Not Specified
Status: For Sale
new
Gear Profile Grinding GW 3600 H

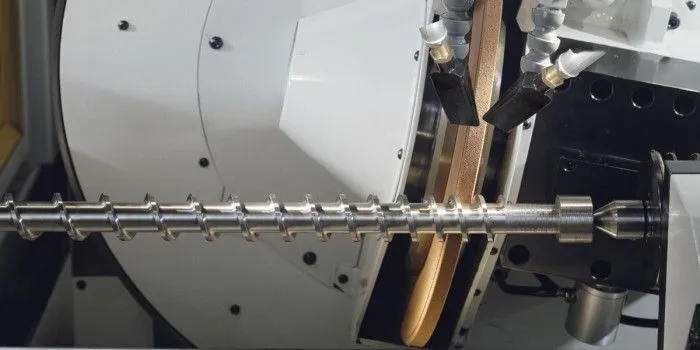

The GW 3600 H is a special machine for the high precision grinding of long screw-type profiles.
High Precision Grinding of Long Screw-type Profiles
The EMAG SU GW 3600 H gear profile grinding machine is a special machine for the high precision grinding of long screw-type profiles, such as extruder screws for plastic injection molding or ball screws.
Equipped with a powerful grinding spindle for large grinding wheels and workpiece supports adapted to each application, you will produce worry-free screws up to a length of 3600 mm. With its optional dressing units for ceramic bonded grinding wheels, the machine is prepared for flexible mass production requirements.
You will receive your GW 3600 H gear profile grinding machine together with the appropriate software and the required grinding and dressing tools to make your screw production soar. Machines for longer workpieces on request.
Special machine version for the manufacture of extra-long screw-type workpieces.

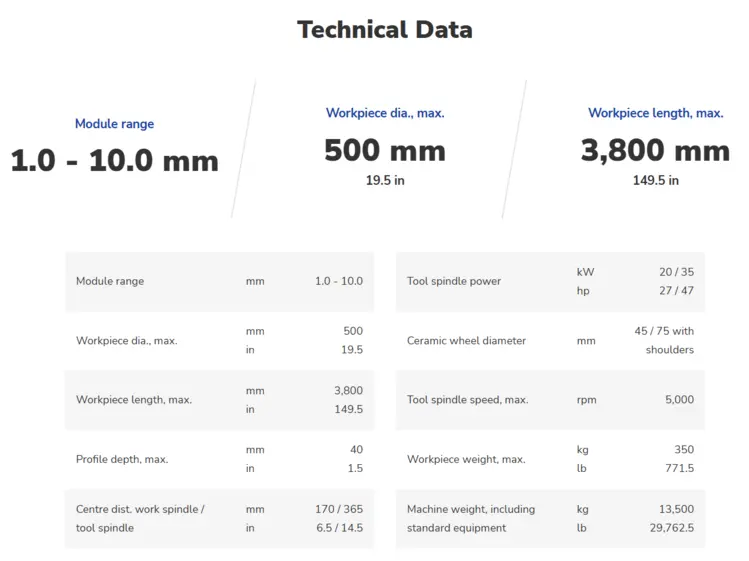

- Module range: mm 1.0 - 10.0
- Workpiece dia., max.: 500 mm | 19.5 in
- Workpiece length, max.: 3,800 mm | 149.5 in
Request Quote
The GW 3600 H is a special machine for the high precision grinding of long screw-type profiles.
High Precision Grinding of Long Screw-type Profiles
The EMAG SU GW 3600 H gear profile grinding machine is a special machine for the high precision grinding of long screw-type profiles, such as extruder screws for plastic injection molding or ball screws.
Equipped with a powerful grinding spindle for large grinding wheels and workpiece supports adapted to each application, you will produce worry-free screws up to a length of 3600 mm. With its optional dressing units for ceramic bonded grinding wheels, the machine is prepared for flexible mass production requirements.
You will receive your GW 3600 H gear profile grinding machine together with the appropriate software and the required grinding and dressing tools to make your screw production soar. Machines for longer workpieces on request.
Special machine version for the manufacture of extra-long screw-type workpieces.
- Module range: mm 1.0 - 10.0
- Workpiece dia., max.: 500 mm | 19.5 in
- Workpiece length, max.: 3,800 mm | 149.5 in
