2006 WELDWIRE WWUI Turning Roll
sold
Manufacturer: WELDWIRE
Model: WWUI
Asset Type: 73316
Year: 2006
Condition: used
Stock Number: 20671
Status: Sold
used #20671

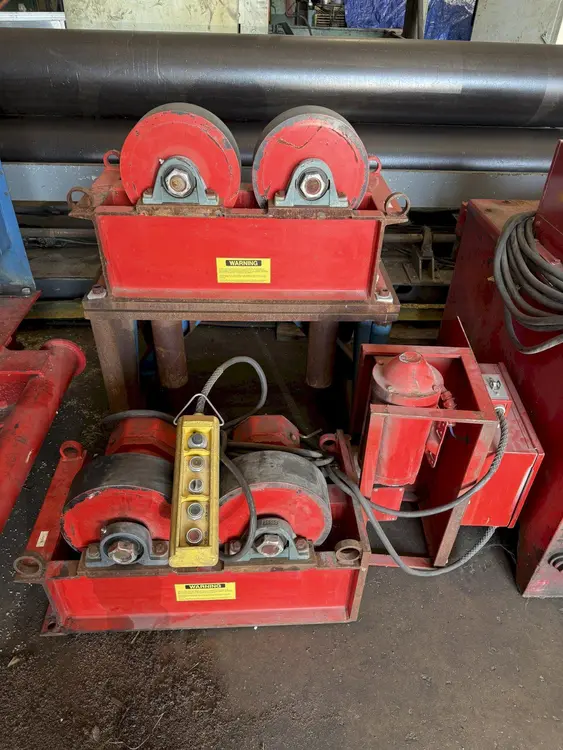

20 Ton Weldwire Short Frame MICARTA Turning Rolls
Load Capacity (per unit): 10 ton/20,000lbs.
Load Capacity (1 drive & 1 idler): 20 ton/40,000lbs.
Diameter Range: 6” – 12”, non-adjustable

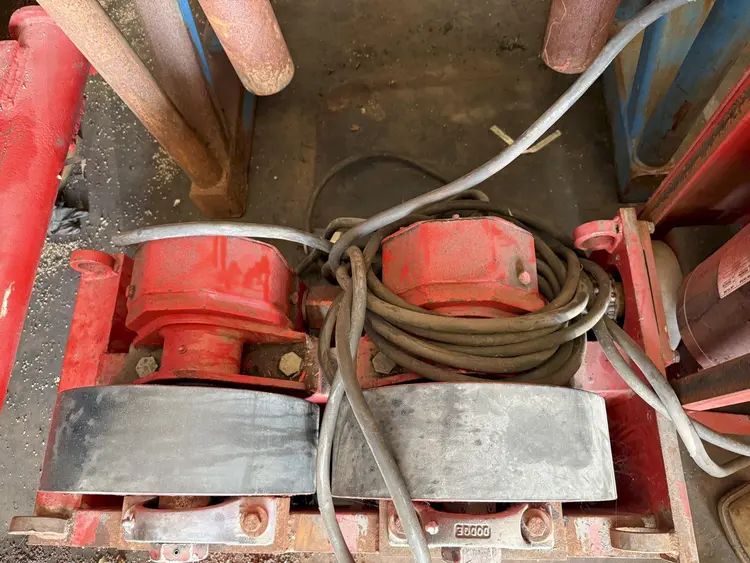

Wheels: 15” diameter X 4” width Micarta
Motor: 1 ½” hp AC
Gearbox: Primary gearbox w/secondary gearboxes
Electrical Power: 440volt/60hz standard
Control: 1 1/2 HP Variable speed programmable AC

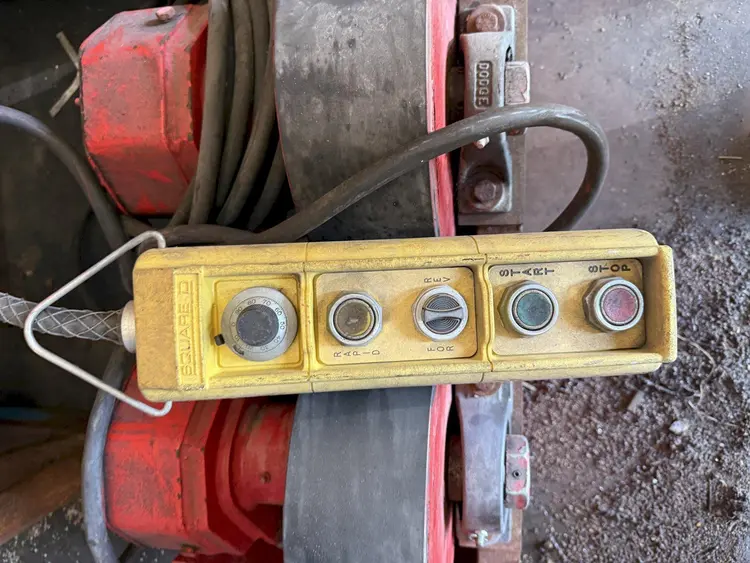

Hand Pendant: Speed control, rapid, for/rev, start, stop w/25’ cable
Request Quote
Load Capacity (per unit): 10 ton/20,000lbs.
Load Capacity (1 drive & 1 idler): 20 ton/40,000lbs.
Diameter Range: 6” – 12”, non-adjustable
Wheels: 15” diameter X 4” width Micarta
Motor: 1 ½” hp AC
Gearbox: Primary gearbox w/secondary gearboxes
Electrical Power: 440volt/60hz standard
Control: 1 1/2 HP Variable speed programmable AC
Hand Pendant: Speed control, rapid, for/rev, start, stop w/25’ cable
Specifications | |
|---|---|
| Mass | |
| Capacity | 40000.0 lb |
