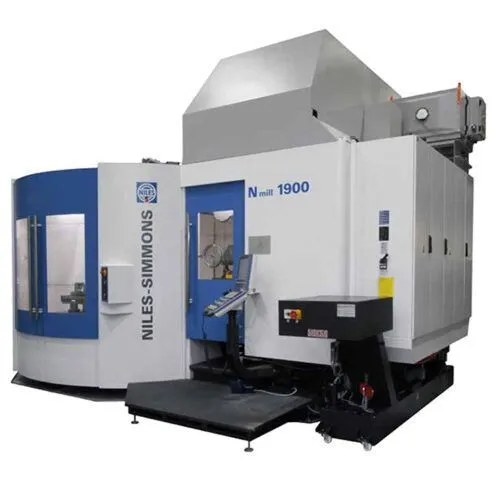

NILES-SIMMONS Nmill 1900 (High precision 5‑Axis Milling Center)

Niles-Simmons High precision 5‑Axis Milling Center Nmill 1900

- Gantry design for maximum robustness with heavy cast iron base and graduated high-precision guidance systems
- Z‑Axis with milling spindle unit in a weightsaving robust sandwich construction
- NC rotary table with a dynamic direct drive with hydraulic clamping at desired angle, rotary transmission for additional functions, optional speed range up to 250 rpm with automatic alignment function
- Reliable high-precision spindles with oilair lubricant with HSK63 and HSK 100 interface, swivelling B‑Axis can be hydraulically clamped at desired angle
- Excellent ergonomics and accessibility
- Uses the latest generation of control technology from HEIDENHAIN and SIEMENS
- New, comfortable operating design with 19″ TFT monitors with NILES-HMI

Optional packages:
- Triple pallet changer
- Internal coolant supply, unregulated 40 bars of pressure | flow rate 2 5 l/min
- Internal coolant supply, regulated 80 bars of pressure | flow rate 18 l/min
- Rotoclear on front/side
- Minimum lubrication
- Coolant Mist extraction
- Tool probing by using lasers
- Sensor for measuring workpiece
- Higher precision
- Thermal and vibration sensors
- Remote diagnosis
- Tailored solutions
