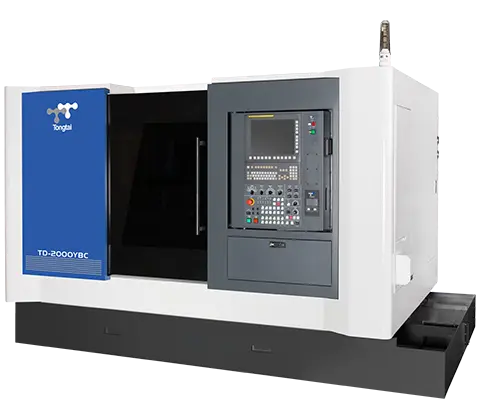

TONGTAI TD Series (3-Axis Lathes)
Manufacturer: TONGTAI
Model: TD Series
Asset Type: 61076
Year: Not Specified
Condition: new
Stock Number: Not Specified
Status: For Sale
new
Inheriting the outstanding machine rigidity from TB series, the TD series is the brand new
multi-tasking turning center with single power turret which standard equipped with 12 tool stations
and linear Y axis to process milling function. In addition, for customer's needs, the 16 tool stations
turret and sub-spindle is also available for more complex machining process, it helps to reduce
labor costs and increase floor utility.
75 degree machine bed structure
Different from the 90 degree slant bed on TB series, the TD series adopts a 75 degree slant bed
design. It not only keeps the advantages of excellent chip disposal and accessibility, but also lowers
the machine's gravity center for enhancing the entire structure rigidity.
Linear Y axis structure
TD series adopts a symmetrically saddle design, the X/Y/Z axis are perpendicular to each other with
a real linear Y axis. It allows servo compensation on each axis to optimize the positioning accuracy.
