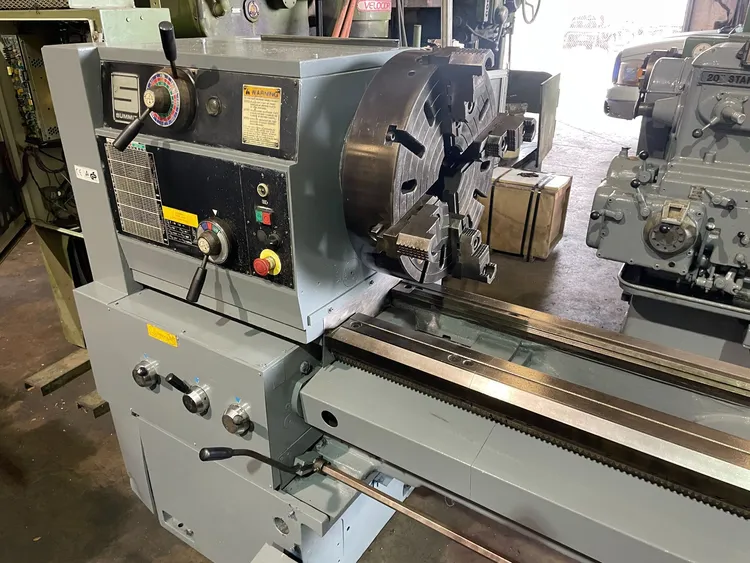

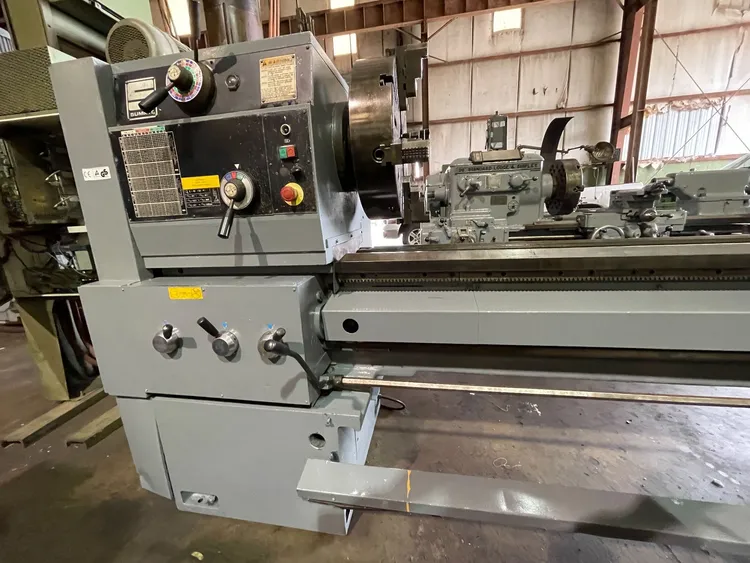

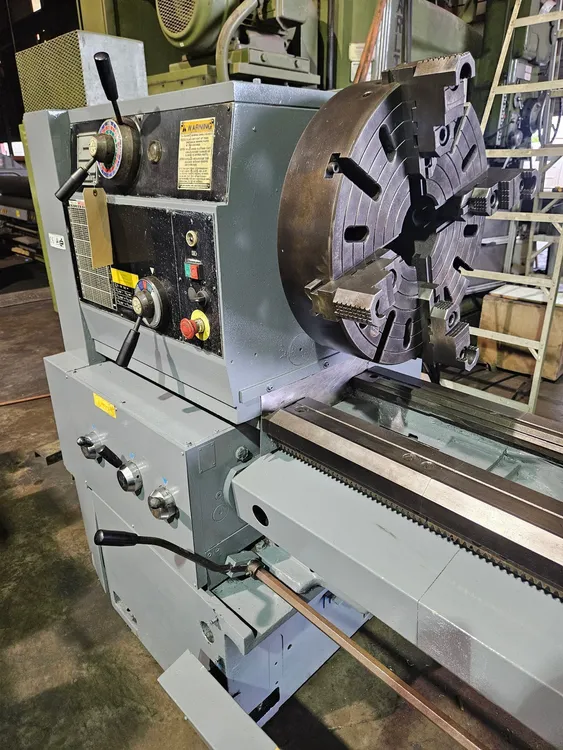

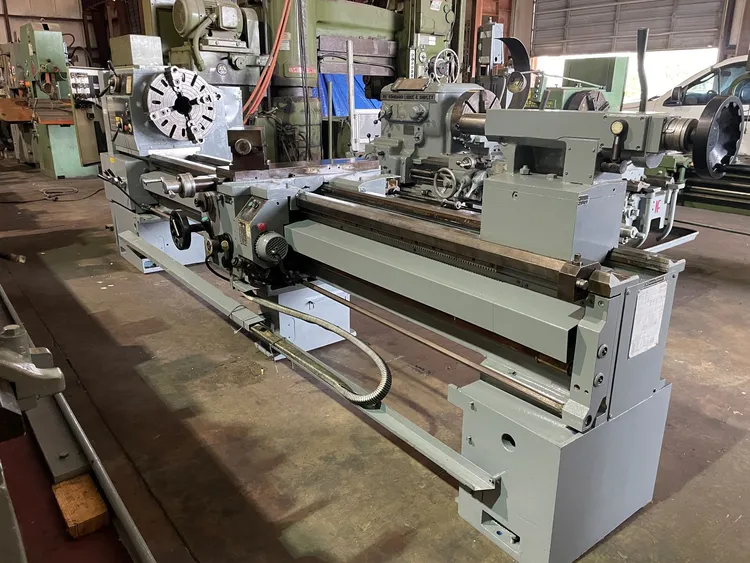

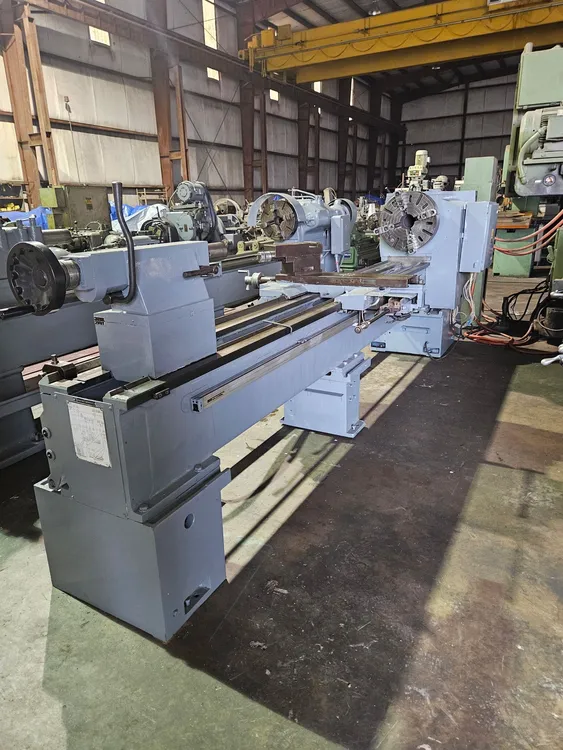

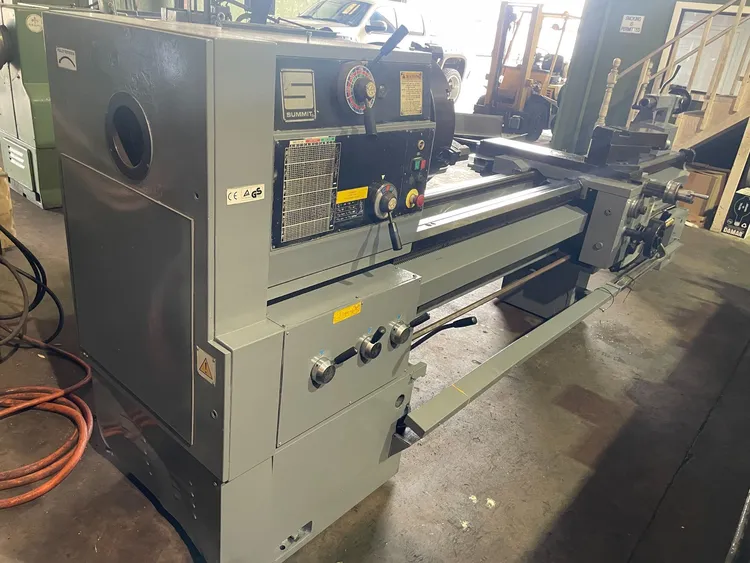

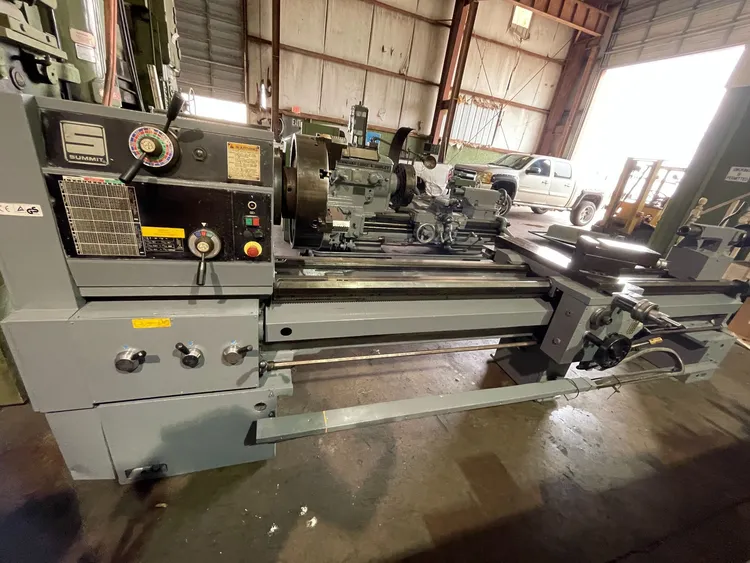

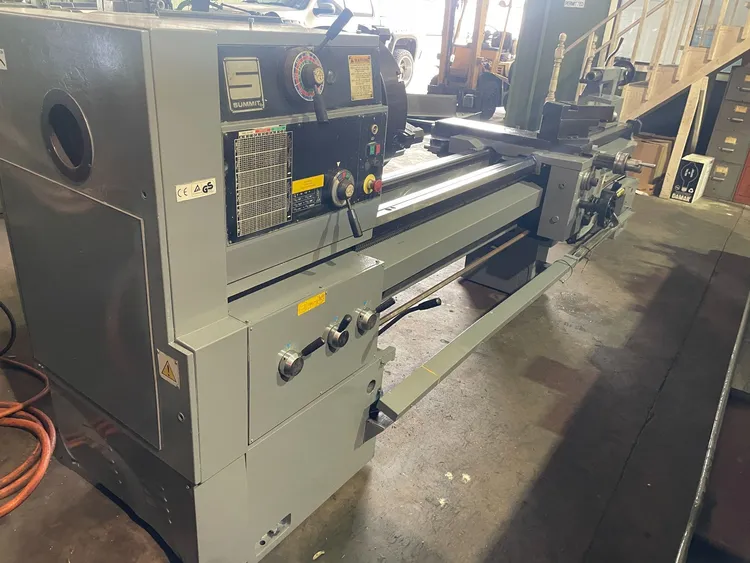

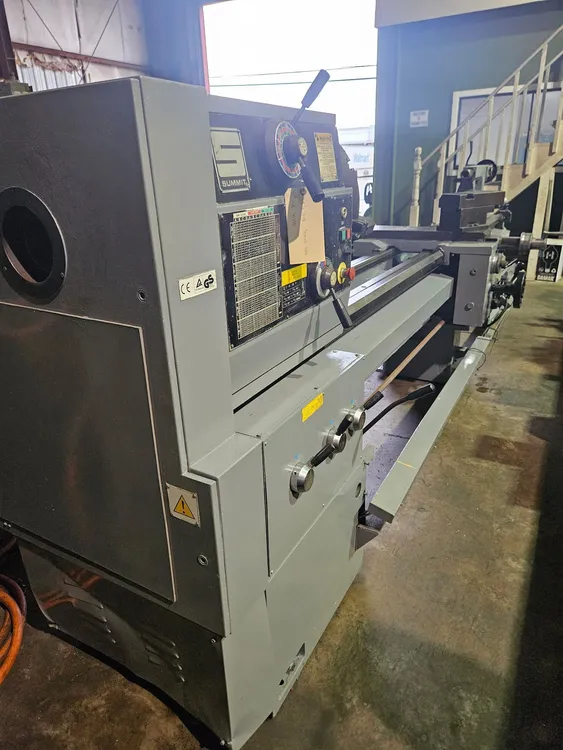

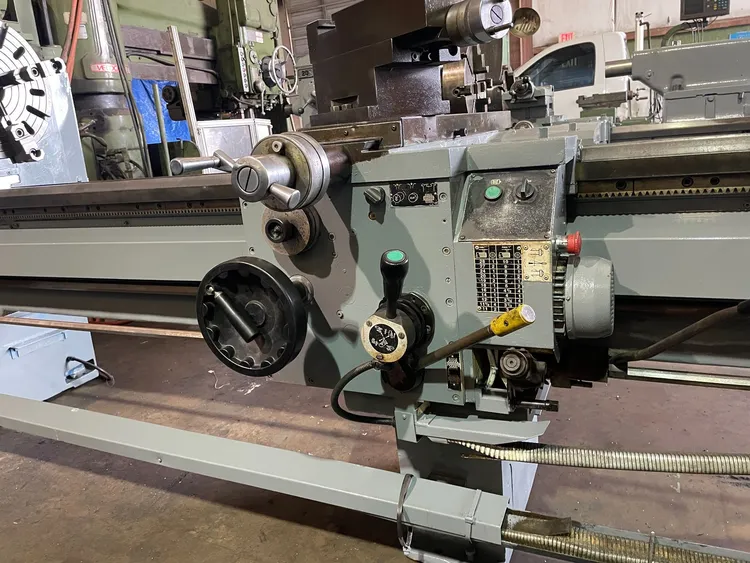

28" x 120" SUMMIT Engine Lathe

Max Swing Over Ways: 28-1/2"
Max Swing Over Cross Slide: 19-5/8"
Max Center Distance: 120"
Drive Motor: 15 HP

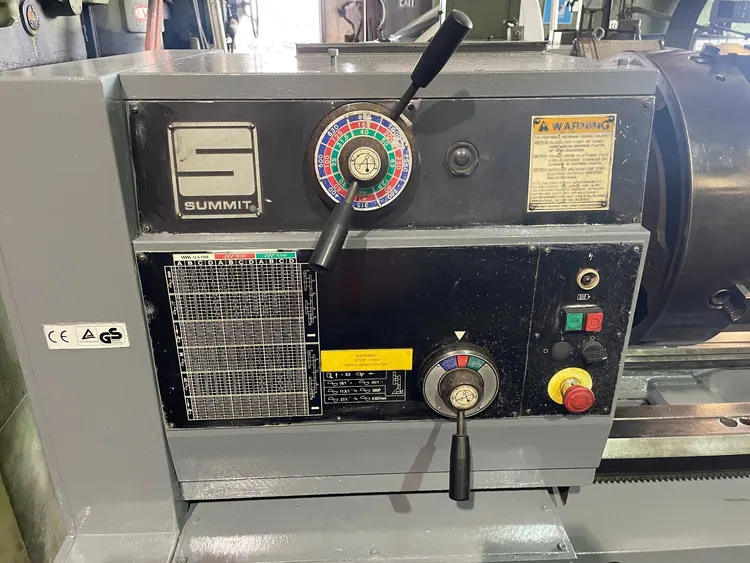

Spindle Speeds: (24) 16 - 1,250 RPM
Swing In Gap: 36-1/2" / 14-3/4" Gap Length

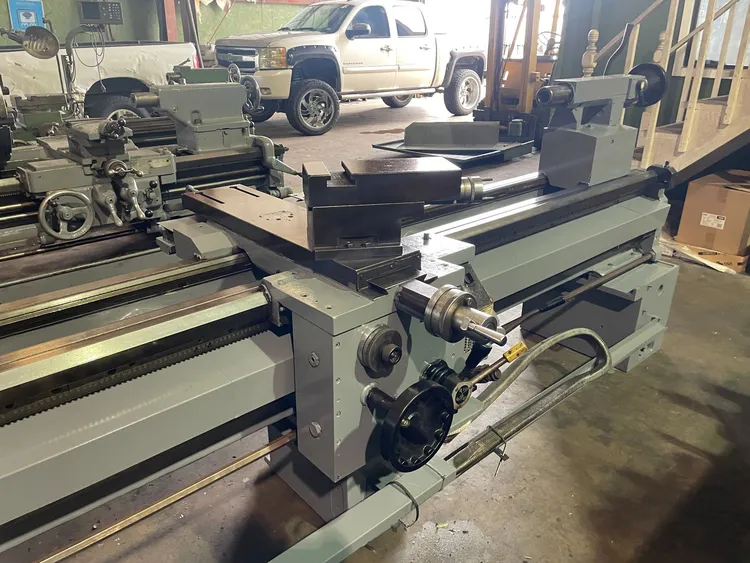

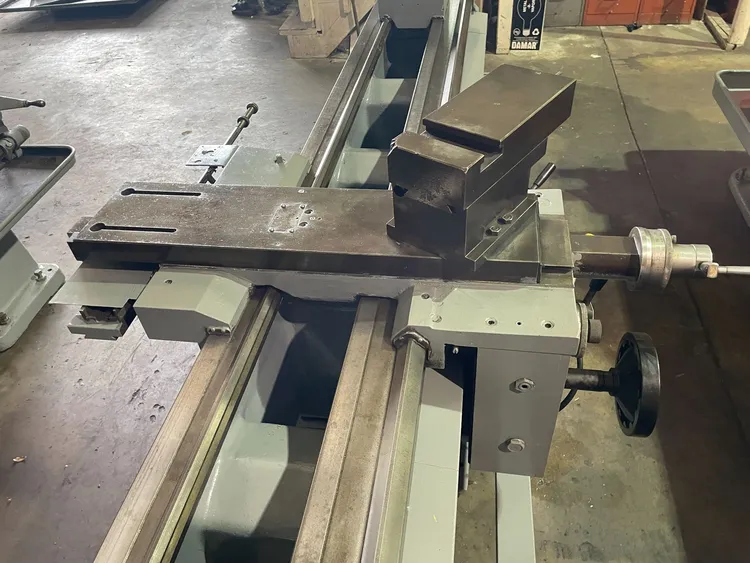

Max Cross Slide Travel: 15-1/4"

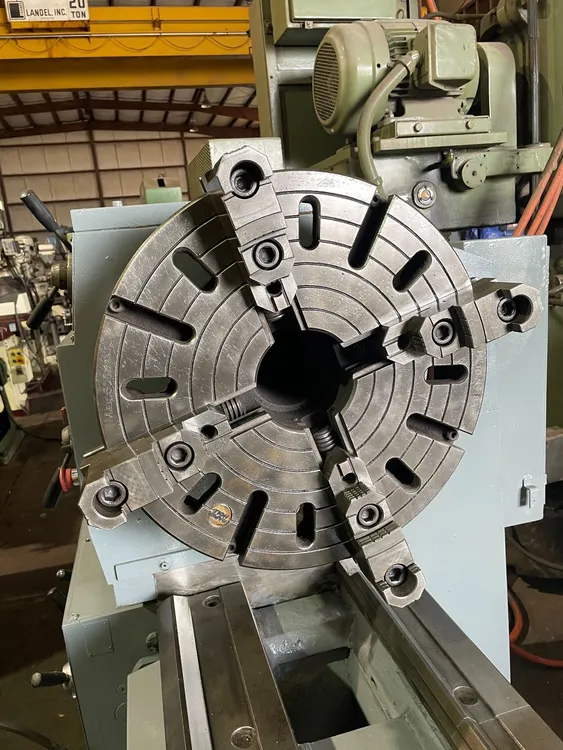

Spindle Mount: D1-8

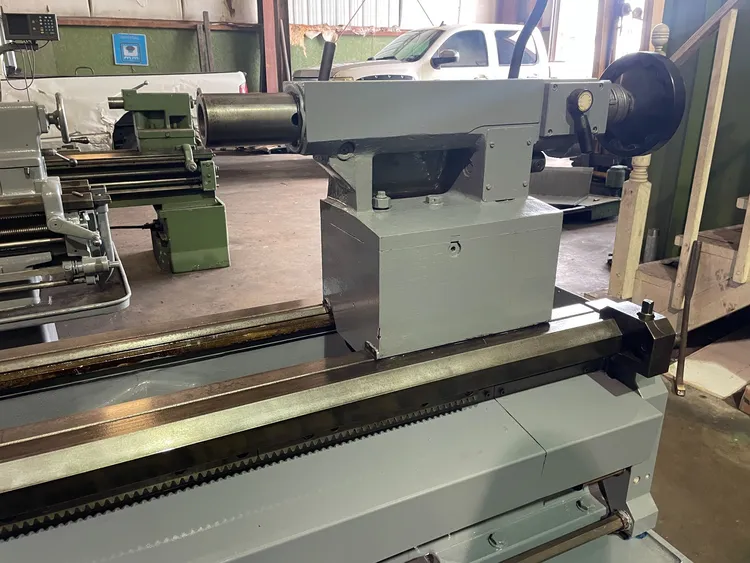

Tailstock Quill Travel: 9-1/2"Two Speed Control
Tailstock Quill Taper: MT 5

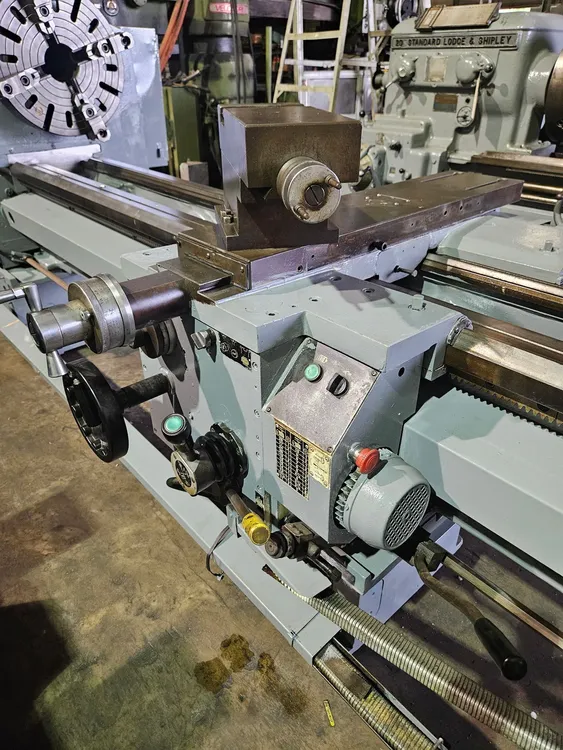

Feed Rates: Long: .00145-.44474, Cross: .0007-.22237
Hole Thru Spindle: 4-1/8"
Max Compound Travel: 5-3/8"
Rapid Feed Rates: 149-19/32 IPM Z / 73 11/16 IPM X
Threading Capacities: Inch / Meric (64 Threads)

No chip pans
