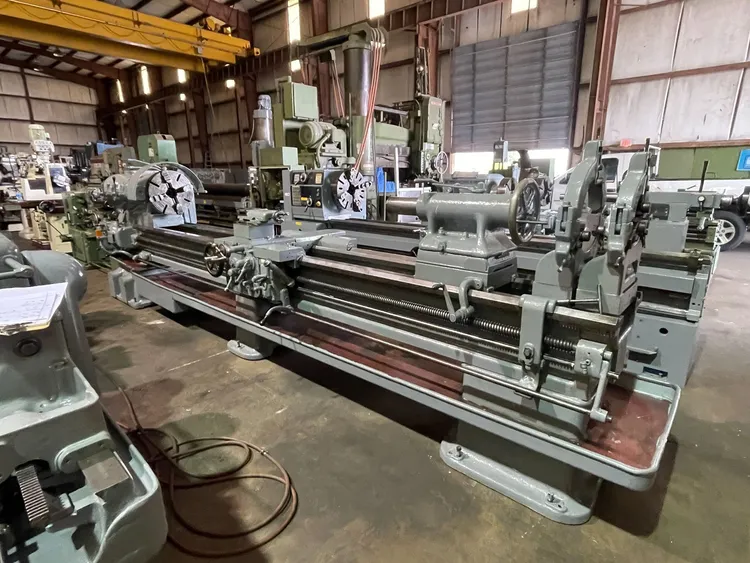

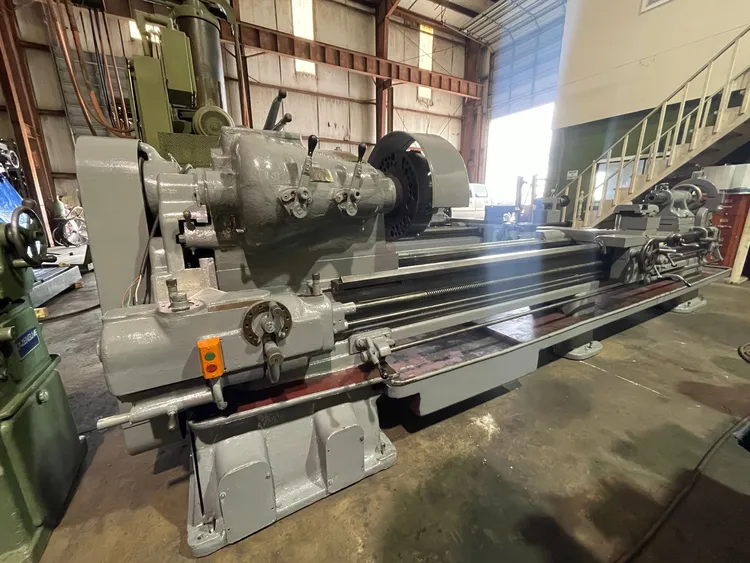

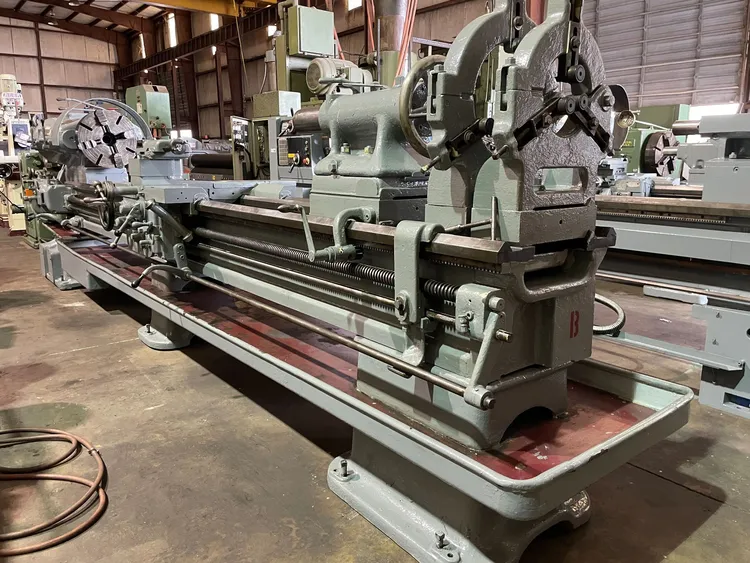

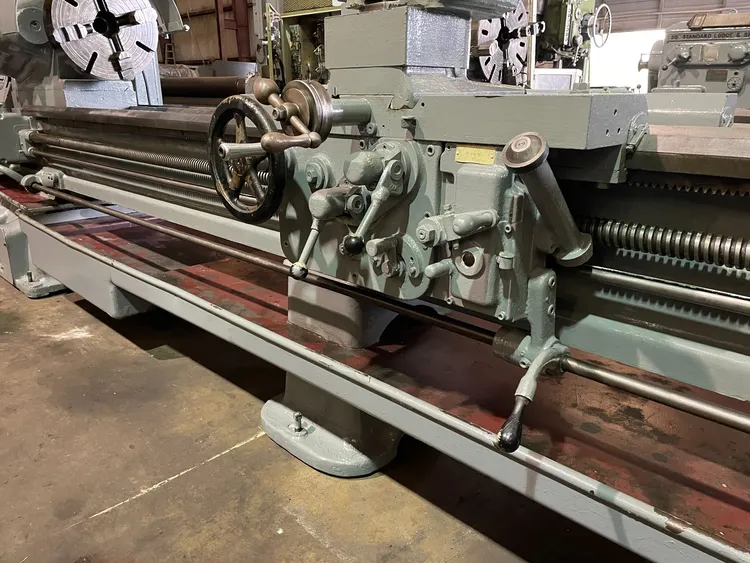

BOYE & EMMES 28" x 144" - Manual Lathe, Engine Lathe
Manufacturer: BOYE & EMMES
Model: 28 x 144
Asset Type: 73309
Year: Not Specified
Condition: used
Stock Number: 20974
Status: For Sale
used #20974
BOYE & EMMES 28" x 144" - Manual Lathe, Engine Lathe
Capacity
Swing Over Bed: 28"
Swing Over Cross Slide: 20"
Distance Between Centers: 144"
Spindle
Maximum Spindle Speed: 436 RPM
Feeds & Threading
Feed Range: 0.002 - 0.154 IPR
Threading Range: 56 - 1 TPI
Chuck & Workholding

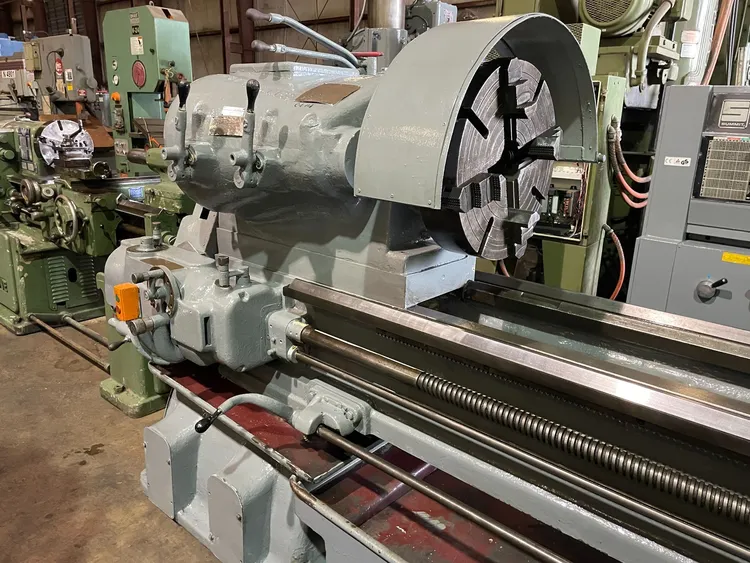

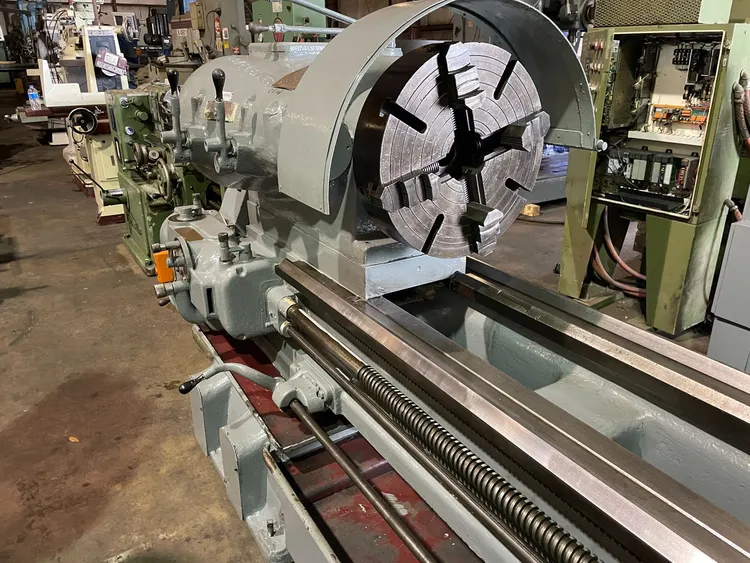

Chuck: 18" 4-Jaw Chuck
Equipped With
11" Roller-Type Steady Rest
7" Roller-Type Steady Rest
Chip Pan
Dimensions & Weight
Overall Dimensions: Approx. 20' × 6' × 4'
Machine Weight: Approx. 15,000 lbs.
Request Quote
Capacity
Swing Over Bed: 28"
Swing Over Cross Slide: 20"
Distance Between Centers: 144"
Spindle
Maximum Spindle Speed: 436 RPM
Feeds & Threading
Feed Range: 0.002 - 0.154 IPR
Threading Range: 56 - 1 TPI
Chuck & Workholding
Chuck: 18" 4-Jaw Chuck
Equipped With
11" Roller-Type Steady Rest
7" Roller-Type Steady Rest
Chip Pan
Dimensions & Weight
Overall Dimensions: Approx. 20' × 6' × 4'
Machine Weight: Approx. 15,000 lbs.
Specifications | |
|---|---|
| Distance | |
| Centers | 144.0 in |
| Gap Swing | 28.0 in |
| Thread Size | 0.0 in |
| Travel-Cross | 20.0 in |
| Travel-Long | 144.0 in |
| Rotational speed | |
| Max RPM | 436.0 rpm |
