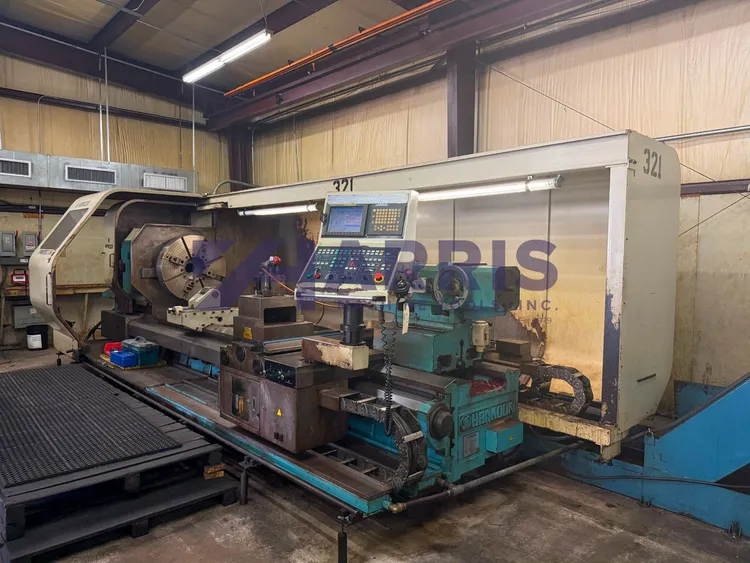

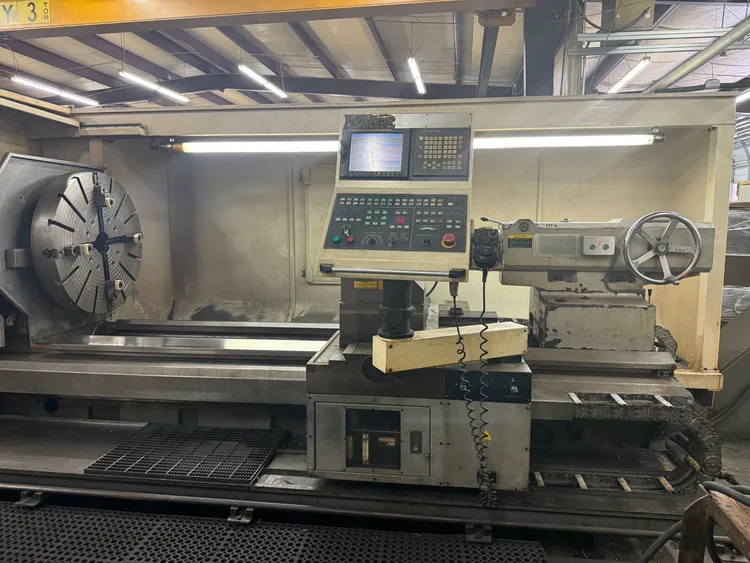

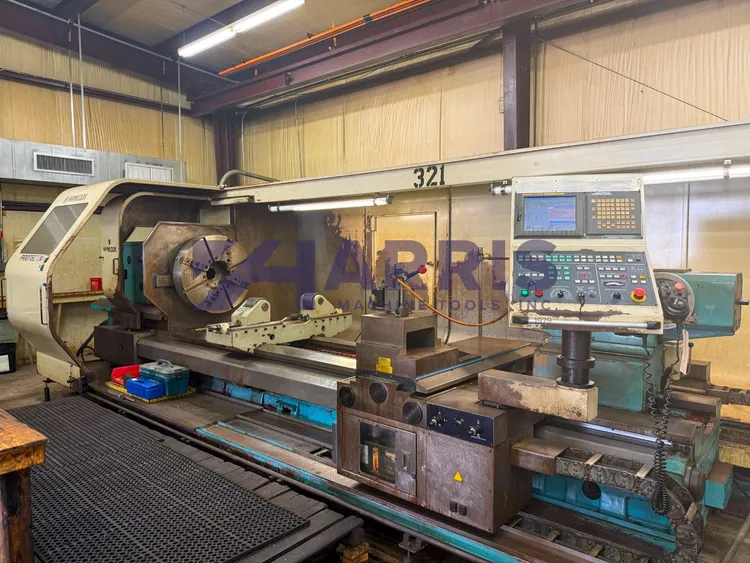

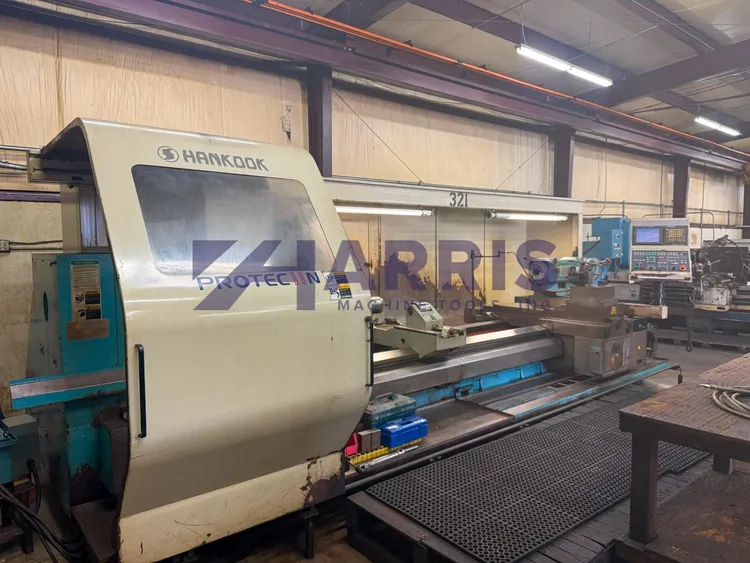

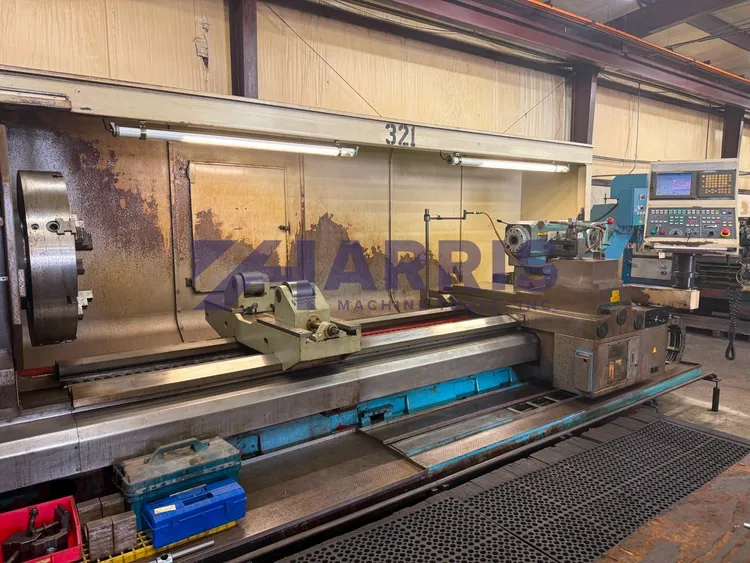

43" X 80" HANKOOK CNC HEAVY DUTY LATHE, PROTEC 11N/2000

Hankook Protec11NA CNC Lathe, S/N 39L08718, Date MFG 12/2008,

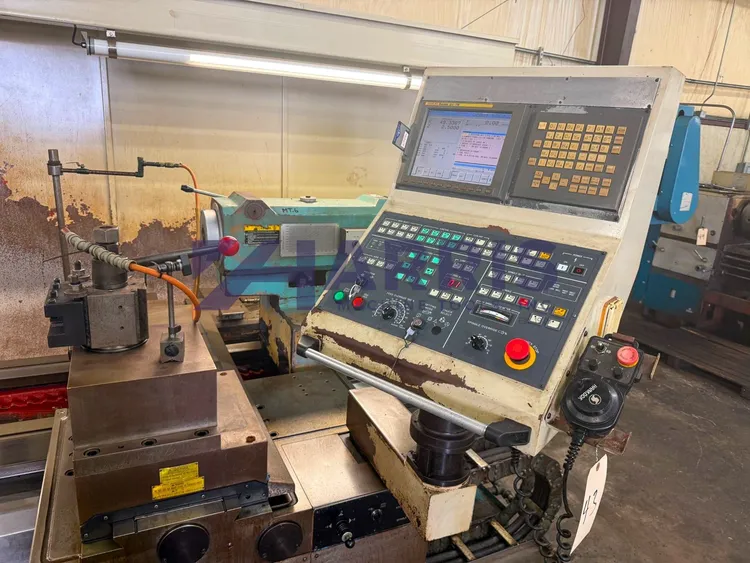

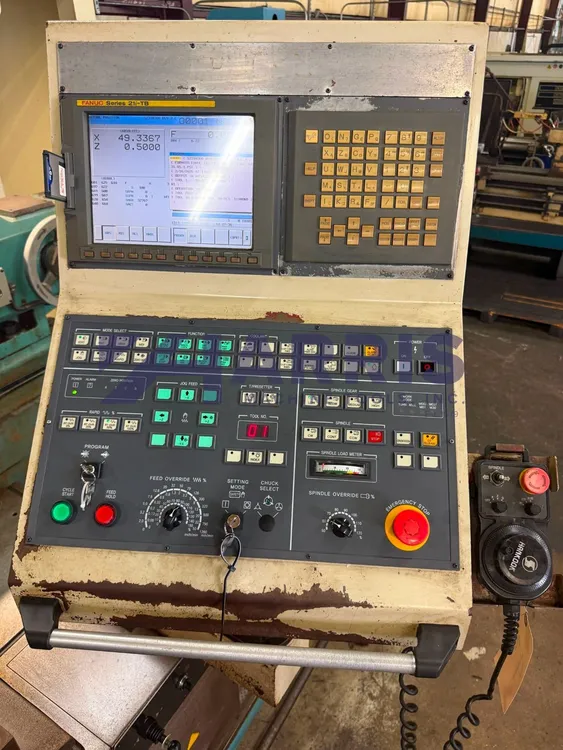

FANUC 21i-TB CONTROL

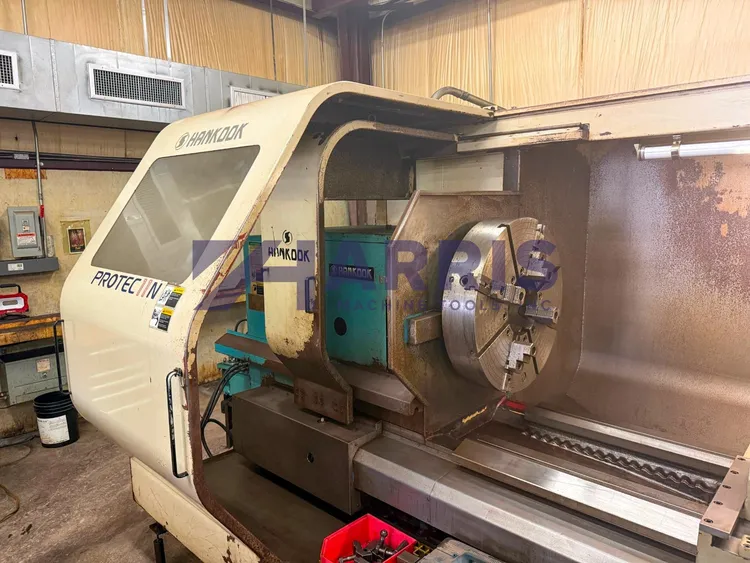

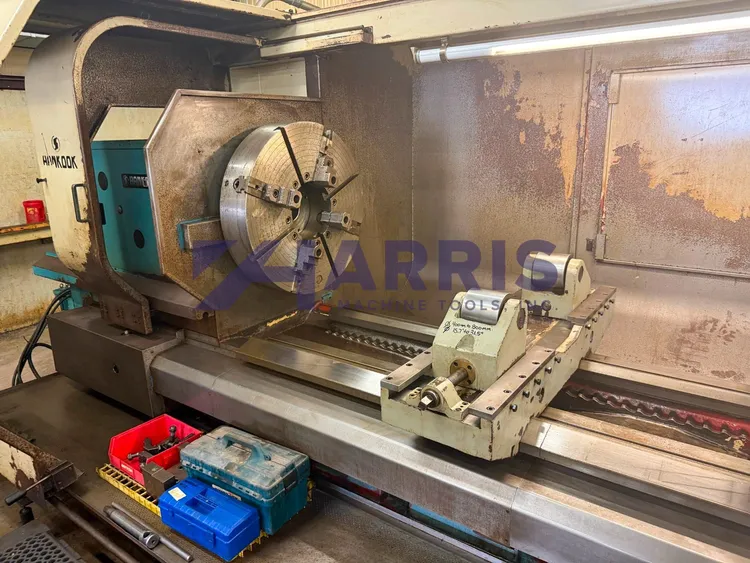

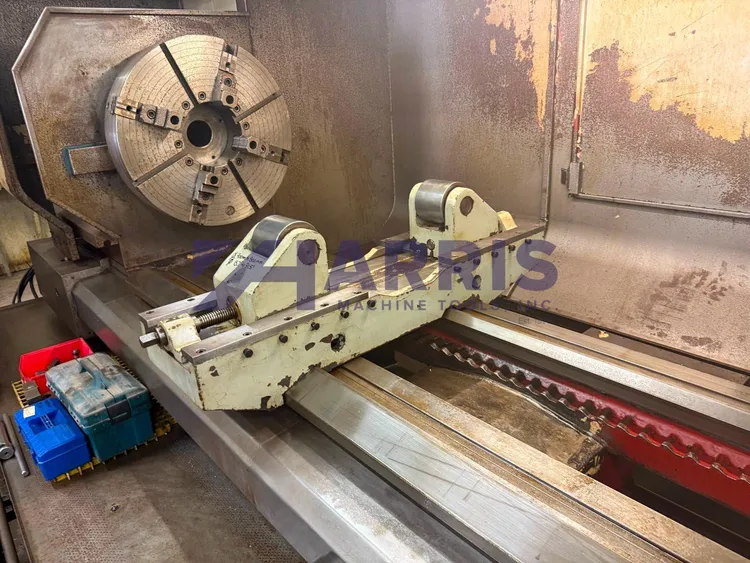

36" MANUAL INDEPENDENT 4-JAW CHUCK
TRAVEL X-24.4", Z-78"
MAX. SWING (OVER BED) 43"
MAX. SWING (OVER CARRIAGE) 29"
DISTANCE BETWEEN CENTERS 78"
MAX. LOAD 17,500 LBS.
SPINDLE BORE Ø4.1"

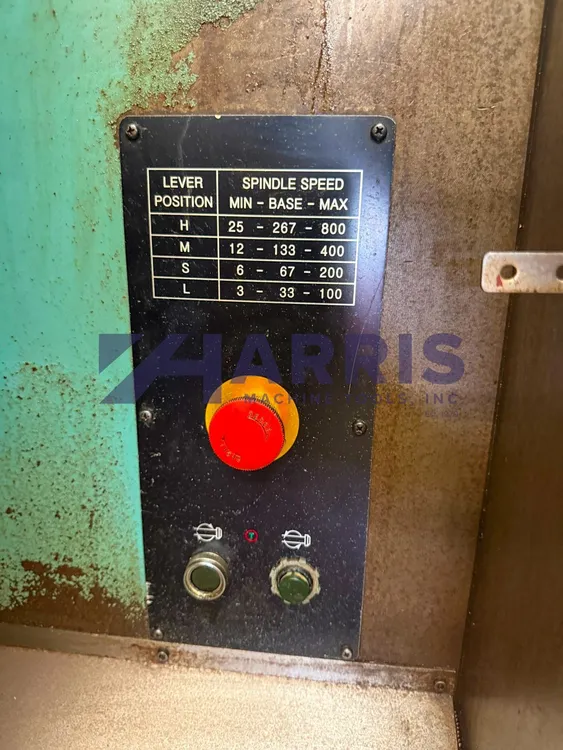

SPINDLE SPEED 1 to 800 RPM, 4 RANGES

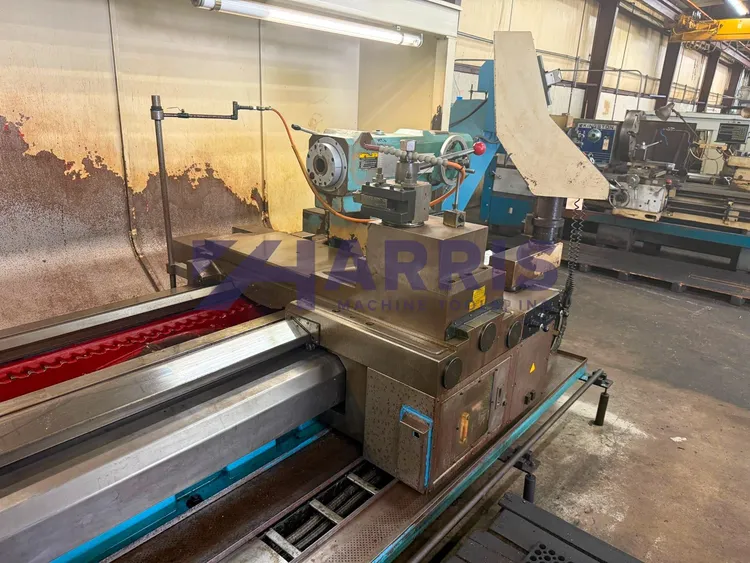

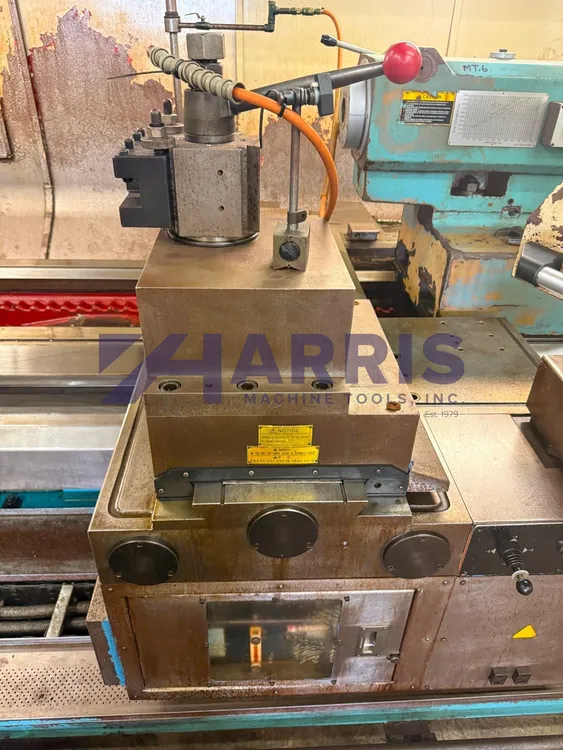

TOOL POST - 4 TOOL CAPACITY (MANUAL INDEX 15° INCREMENTS) HOLDER SIZE 1-1/4" SQUARE

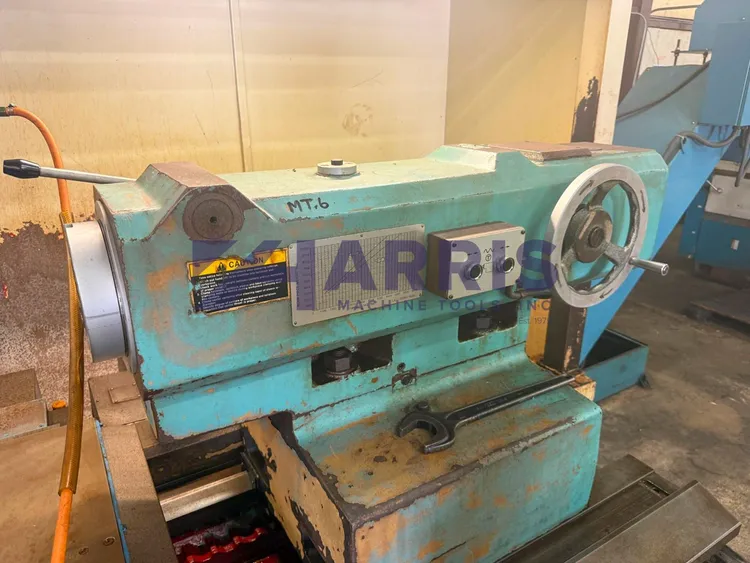

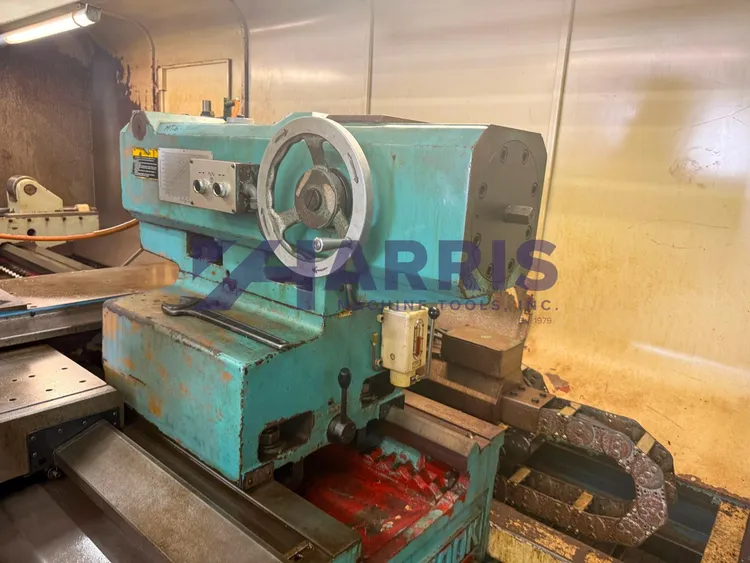

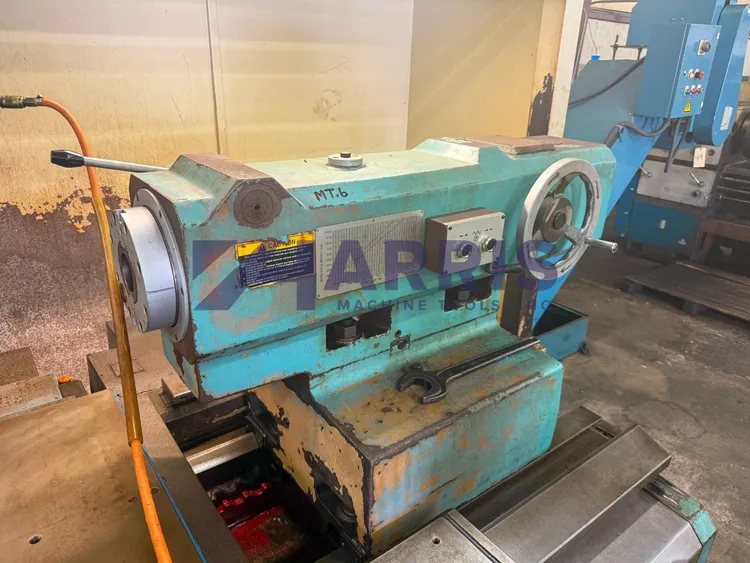

TAIL STOCK - QUILL 7.9", TRAVEL 11.8", CENTER #6 MT
BED WIDTH - 31.5"
BED LENGTH - 186"

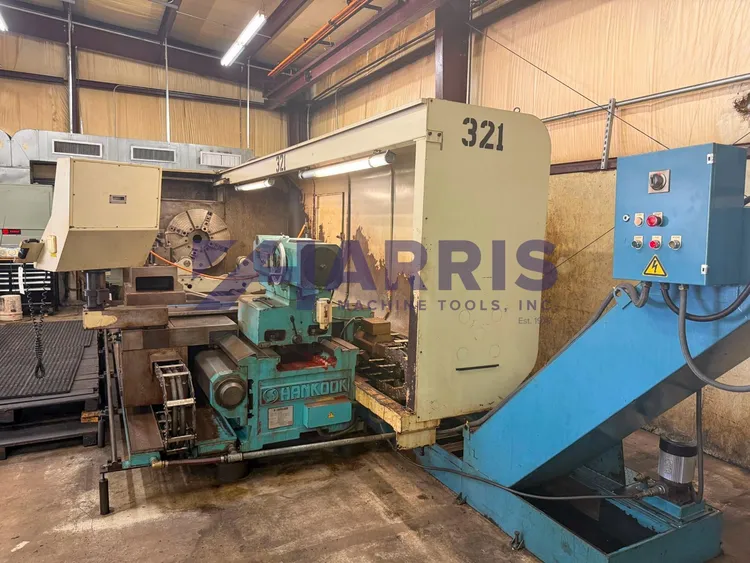

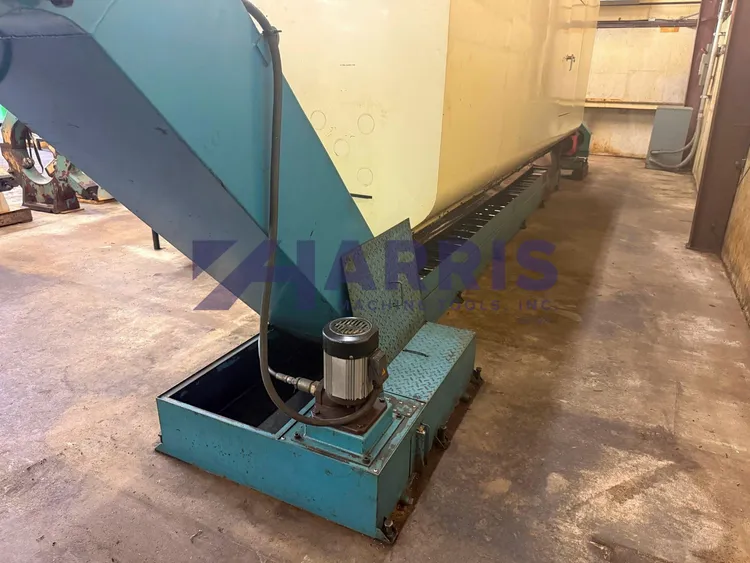

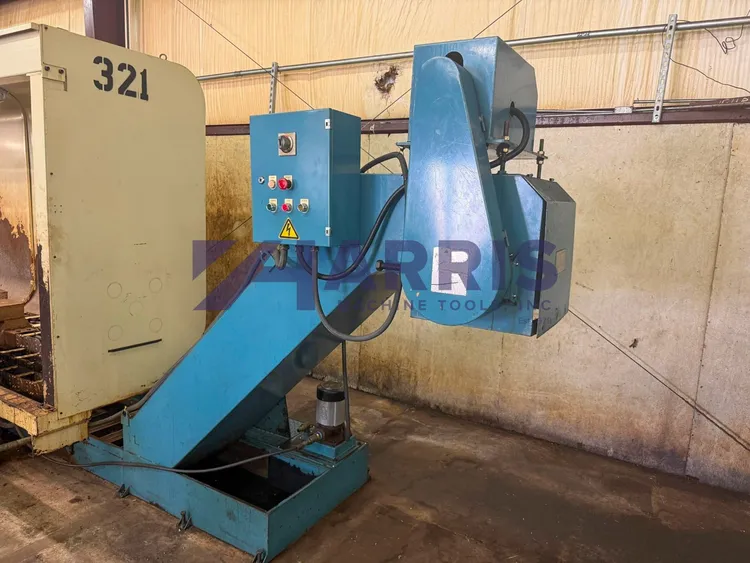

CHIP CONVEYOR
