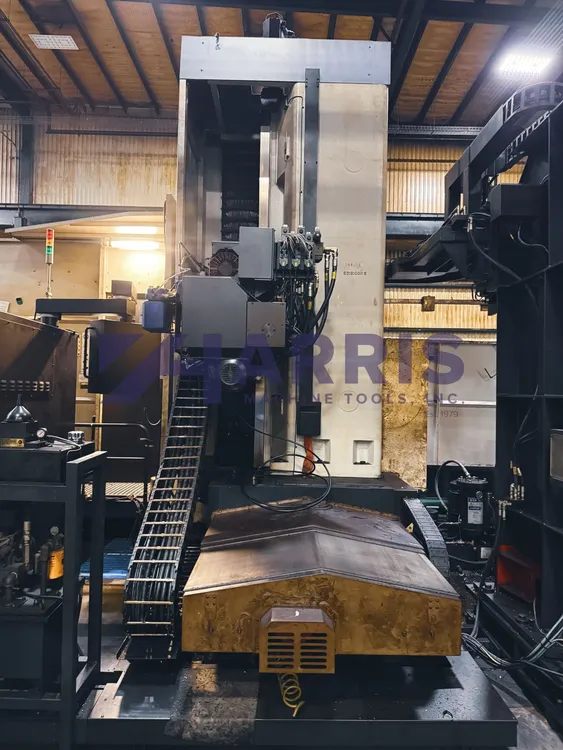

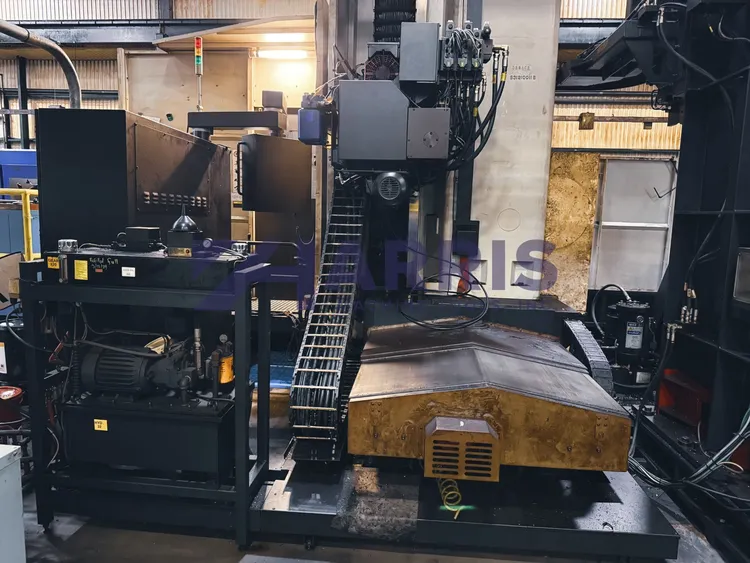

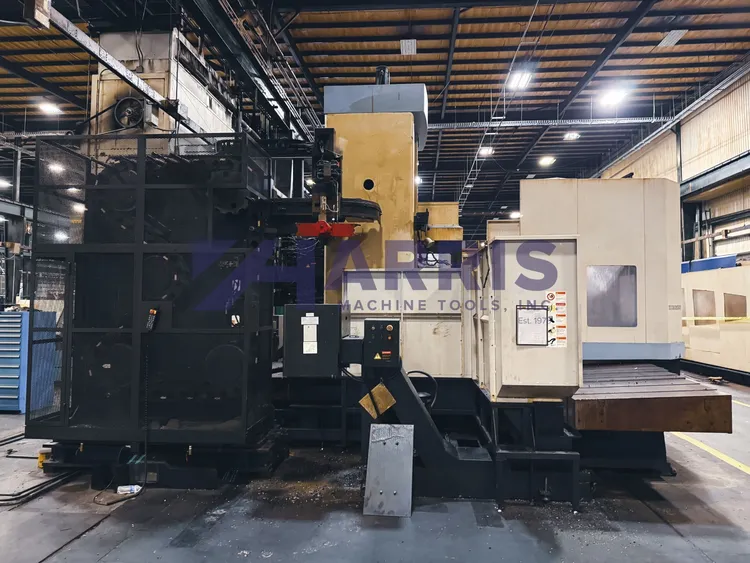

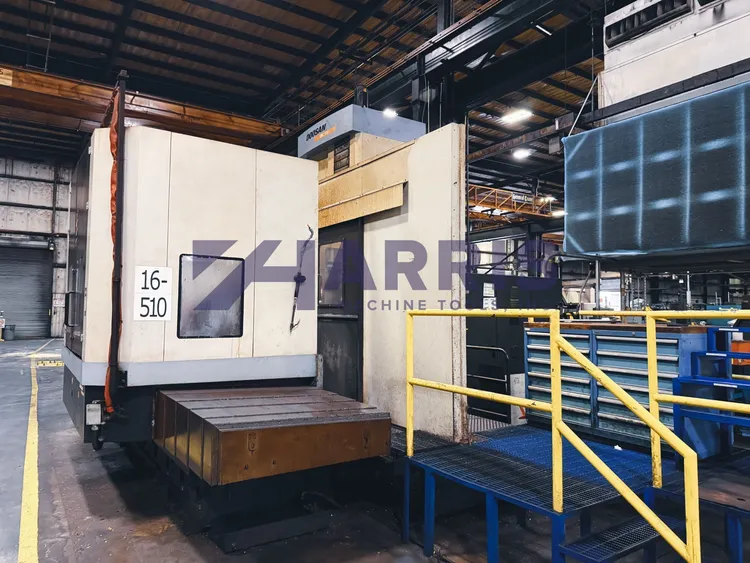

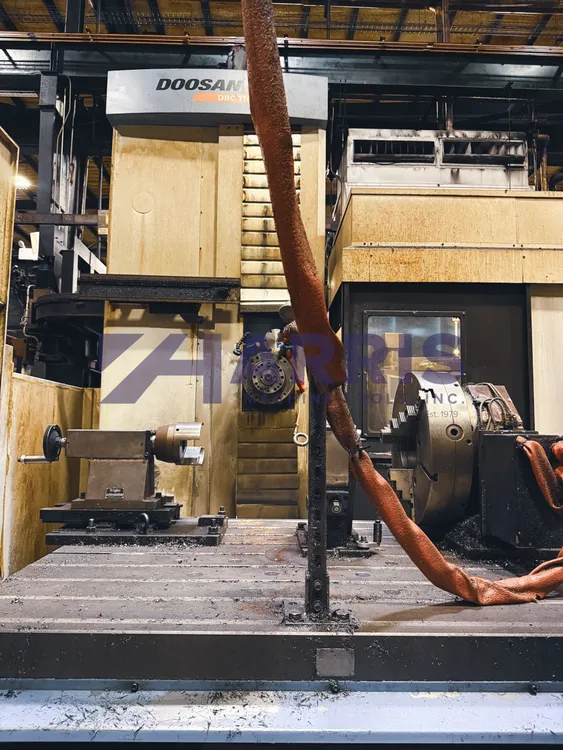

4.3" Doosan DBC-110II CNC Horizontal Boring Mill

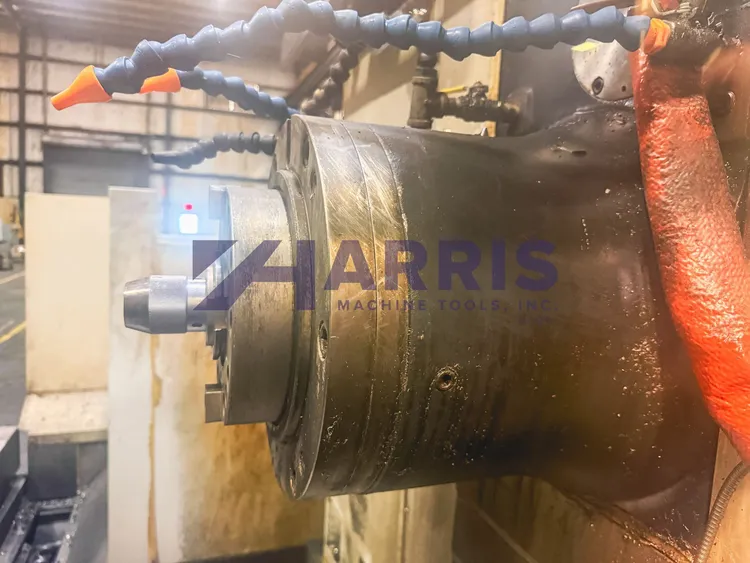

The DBC-110II is built for handling large parts in a single setup. This heavy-duty horizontal boring mill features a 4.3" (109mm) BIG-PLUS CAT 50 spindle running up to 4,000 RPM at 35 HP, giving you the rigidity and precision to tackle aggressive boring and milling work without breaking a sweat.

See it under power at - https://youtube.com/shorts/R4FDClbuhaw?si=vLCjtUIce0WfqL3V

Travels and capacity:

X-axis: 78.7"
Y-axis: 59.1"
Z-axis: 47.2"
W-axis (quill): 19.7" — deep boring without repositioning

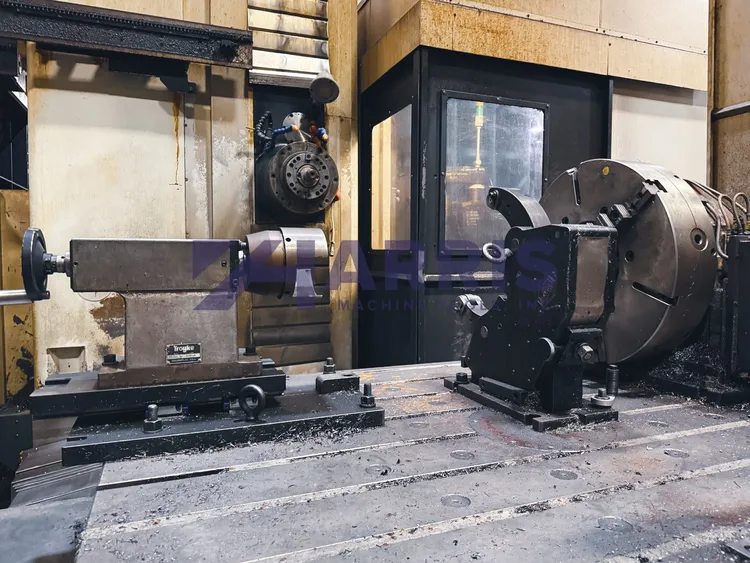

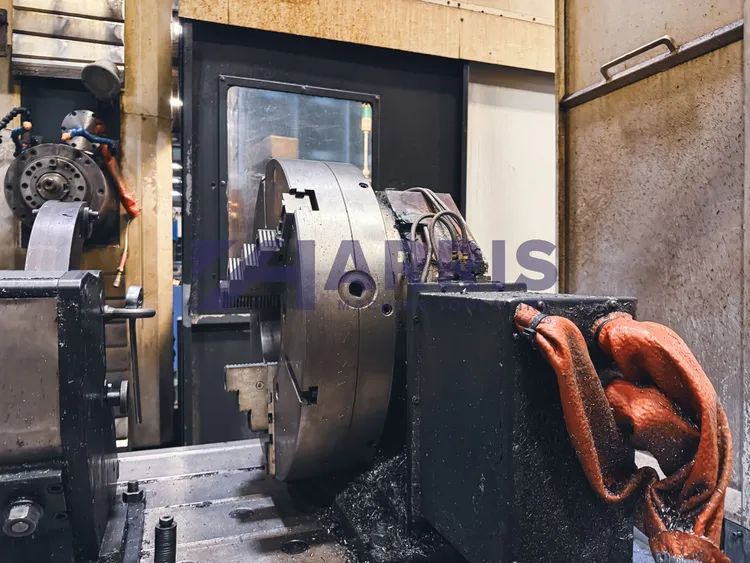

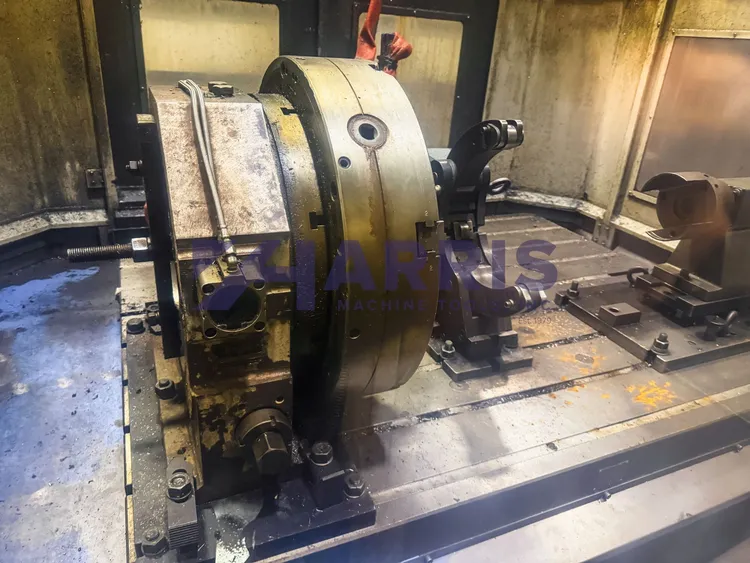

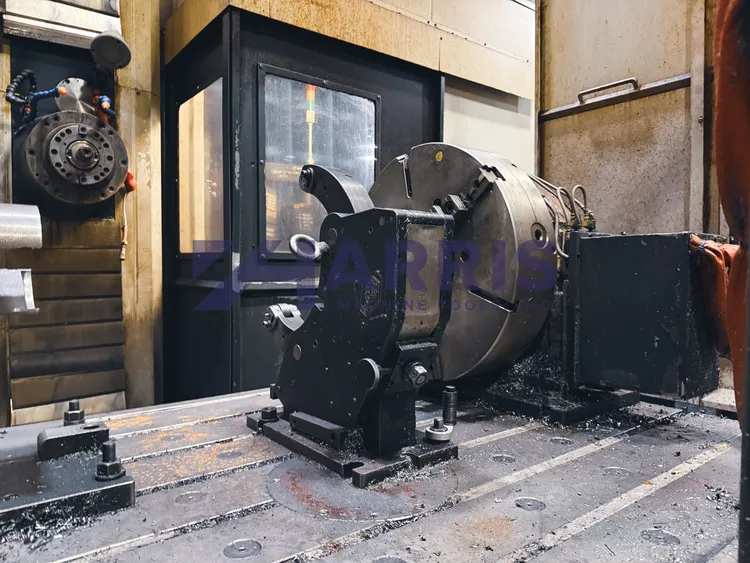

Rotary table: 70" x 55", rated for 15,432 lbs

Tooling and control:

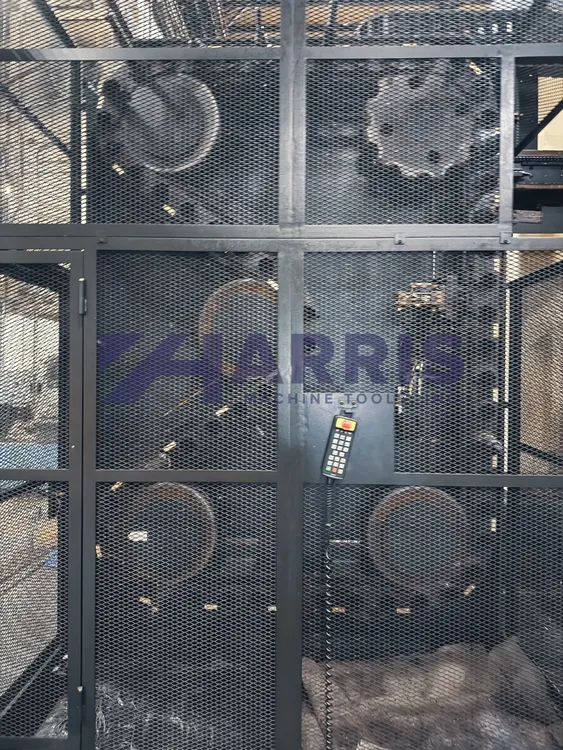

60-station automatic tool changer

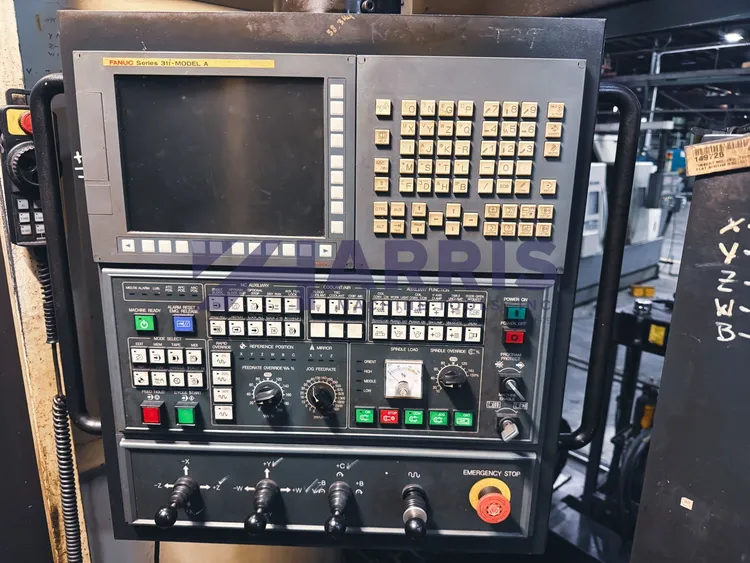

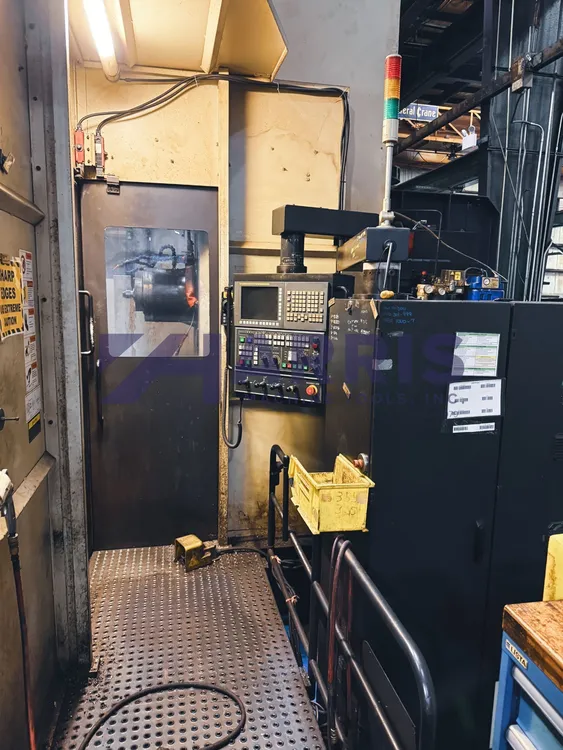

FANUC 31i-A color CNC control
Doosan EZ Guide-i conversational programming

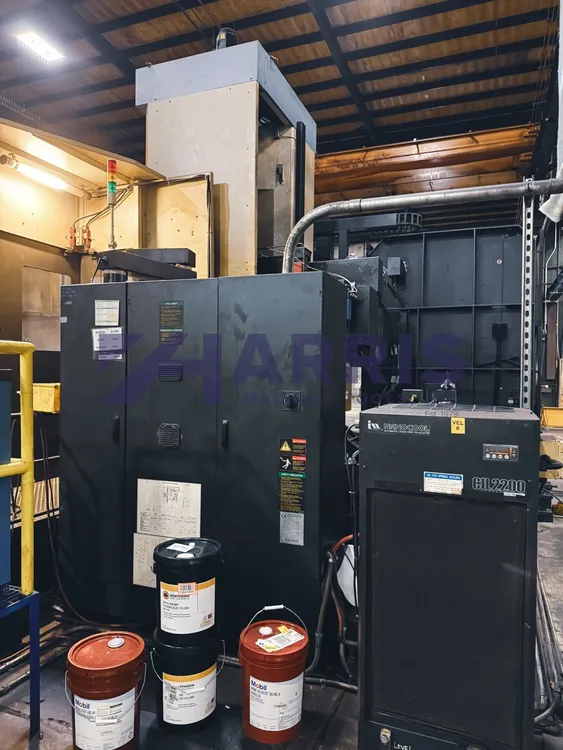

Through-spindle coolant + spindle chiller
Helical interpolation and synchronous tapping
Embedded Ethernet
Steel way covers

Why the "II" matters:
If you're comparing this to an older DBC-110 (non-II), the upgrades here are real, not cosmetic. The FANUC 31i-A control replaces the 18i/21i found on earlier units, and you get AICC II with 200-block look-ahead, 200 tool offsets, and 48 pairs of work coordinates — a big deal if you're running long, complex programs across multiple parts. The spindle interface also got an upgrade: BIG-PLUS CAT 50 instead of standard CAT 50, which means dual-contact face-and-taper engagement for stiffer cuts and longer tool life.
