W.F. WELLS F-16-1 Horizontal Band Saw
Manufacturer: W.F. WELLS
Model: F-16-1
Asset Type: 58775
Year: Not Specified
Condition: used
Stock Number: 21048
Status: For Sale
used #21048

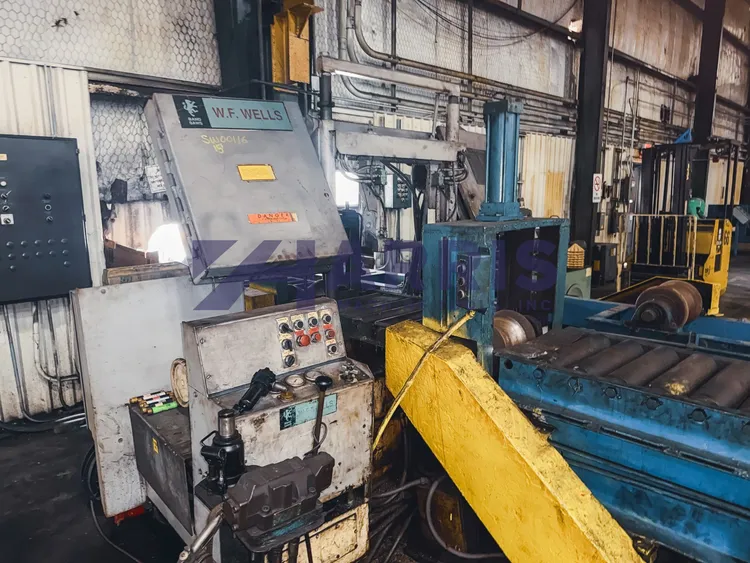

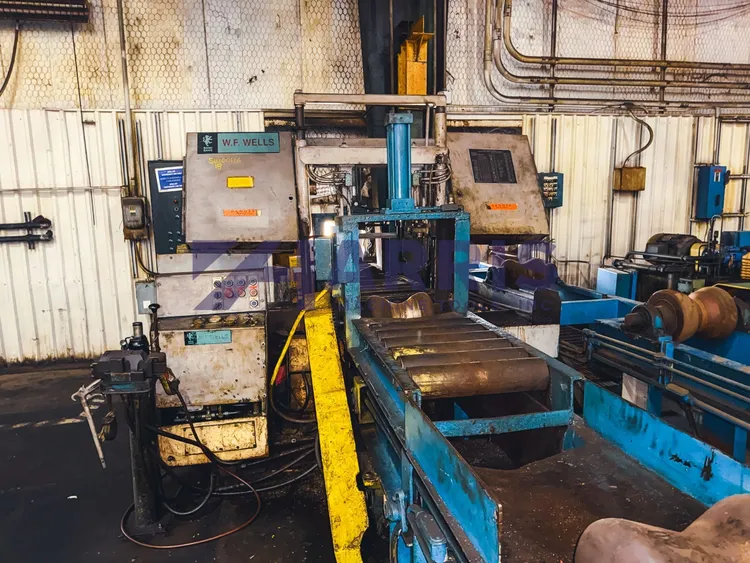

W.F. WELLS F-16-1 used horizontal post style saw. Features include a rectangular capacity of 16” height x 20” width. Ideal for various cutting tasks, this dependable saw offers robust performance in a compact design.
Capacity: Rectangular at 90° 16″ High x 20″ Wide
Round at 90° 16″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-425 SFPM
Blade Size: 1¼” X .042″ X 15′
Sawing Feed: Variable, Hydraulic
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Manual with Indicator

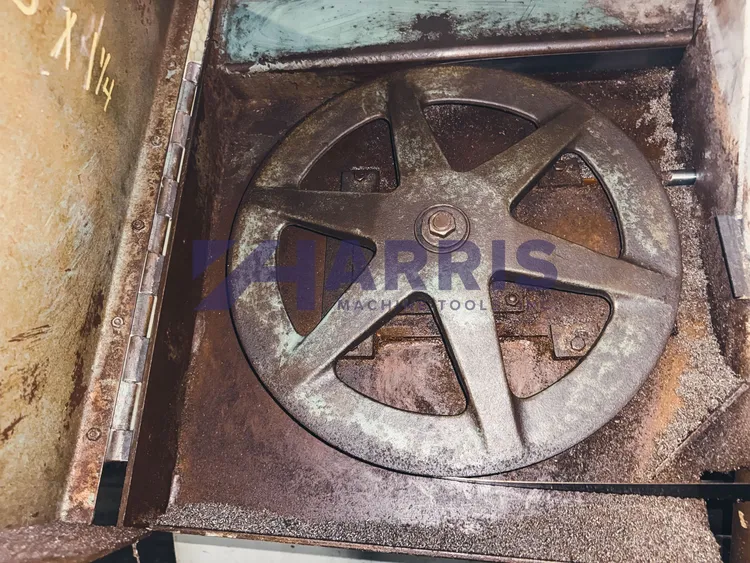

Bandwheel Size: 20″
Blade Drive: 7½ HP, 3ph, AC Vector Drive
Sawing Force: 30-120 lbs
Coolant Capacity: 15 Gallons
Work Height: 26″
Machine Dimensions: 97″ Length x 49″ Width x 83″
Request Quote
Capacity: Rectangular at 90° 16″ High x 20″ Wide
Round at 90° 16″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-425 SFPM
Blade Size: 1¼” X .042″ X 15′
Sawing Feed: Variable, Hydraulic
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Manual with Indicator
Bandwheel Size: 20″
Blade Drive: 7½ HP, 3ph, AC Vector Drive
Sawing Force: 30-120 lbs
Coolant Capacity: 15 Gallons
Work Height: 26″
Machine Dimensions: 97″ Length x 49″ Width x 83″
Specifications | |
|---|---|
| Distance | |
| Rect-Cap (H) | 16.0 in |
| Rect-Cap (W) | 20.0 in |
| Rounds-Cap | 16.0 in |
| Square-Cap | 16.0 in |
| Blade Width | 0.042 in |
| Blade Thickness | 1.0 in |
| Blade Length | 15.0 ft |
| Mechanical power | |
| Power | 7.5 hp |
