MOTW: 2006 Mazak Integrex E-650H-II | CNC Multitasking Center
Welcome to Machines Of The Week, your go-to source for the best used industrial machine tools freshly added to our inventory. Every week, we hand-pick standout equipment across CNC machines, lathes, mills, press brakes, fork lifts and more. Whether you're looking to expand your shop floor or replace aging equipment, these deals move fast. Browse this week's featured machine below.
The highlight this week is our 2006 MAZAK Integrex E-650-II CNC Lathe in excellent condition with Mazatrol Matrix Control, 36" swing, and 120" machining length. This powerhouse features full live milling capability with a 60 HP milling spindle spinning up to 10,000 RPM through a CAT 50 taper, serious horsepower for heavy multitasking work.
The 80-position tool changer keeps your setup flexible, while high-pressure coolant and a chip conveyor make for a clean, efficient cut from start to finish. A hydraulic steady rest and long boring bar stocker round out the package, making this machine equally at home on long-shaft turning and deep bore work. With a rebuilt milling spindle and full multitasking capabilities, this Mazak is ready to go to work and has been noted in excellent used condition!

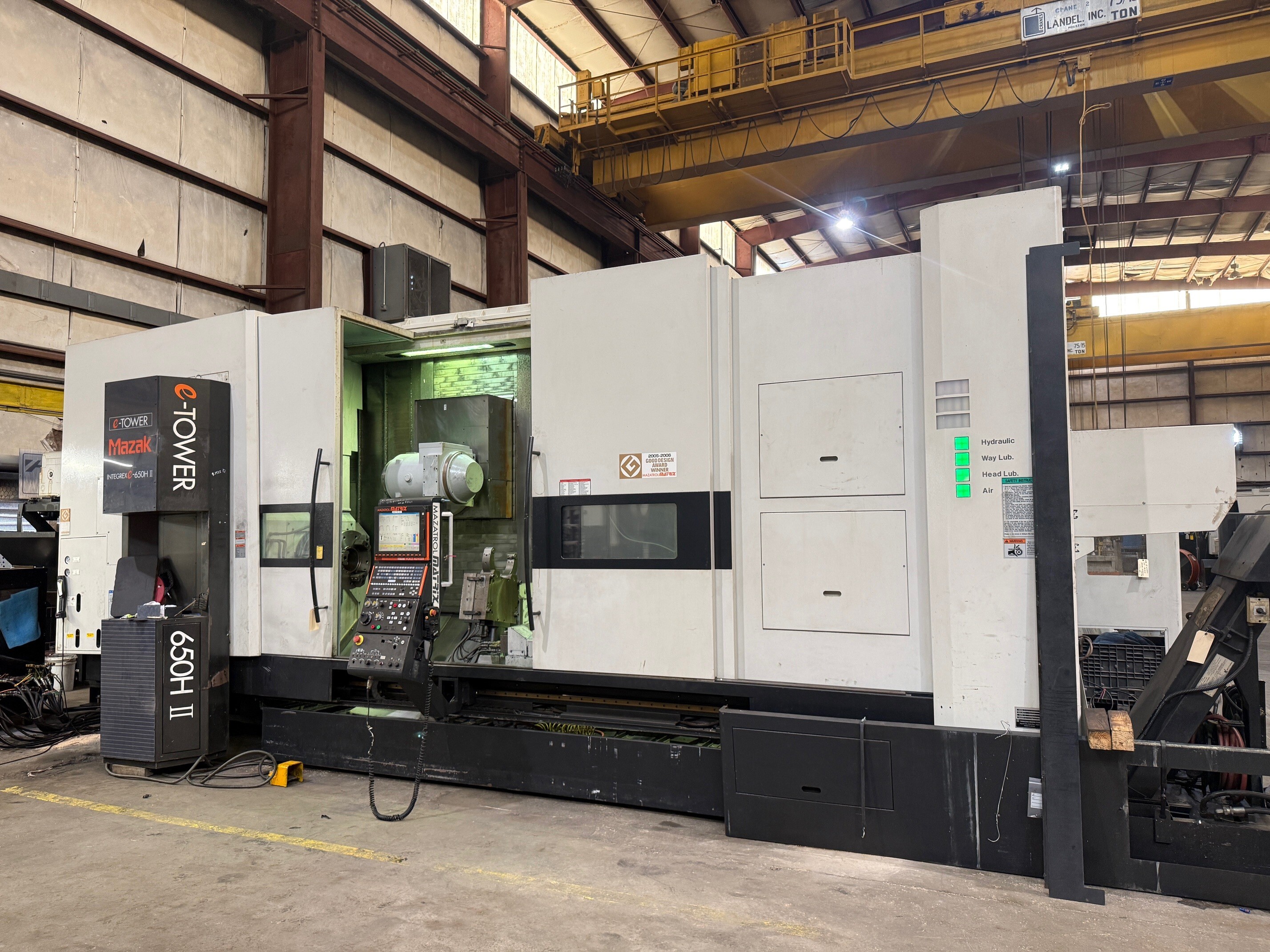

2006 Mazak Integrex E-650H-II | CNC Multitasking Center
Specs:
- X-Travel: 40.00"
- Z-Travel: 123.00"
- Distance Between Centers: 120"
- Max Swing Over Bed: 36.00"
- Max Turning / Cutting Length: 120.00"
- Max Cutting / Turning Diameter: 36.20"
Spindle:
- Bar Capacity: 7.00"
- Chuck Size: 18.5"
- Chuck Type: Air
- Chuck Description: Spindle Taper: CAT 50
- Spindle Bore: 7.00"
- Spindle Speed: 1,600 RPM
- Spindle Motor: 60 HP
Control:
- Control Make/Model: Mazatrol Matrix CNC Control
Tailstock / Steadyrest:

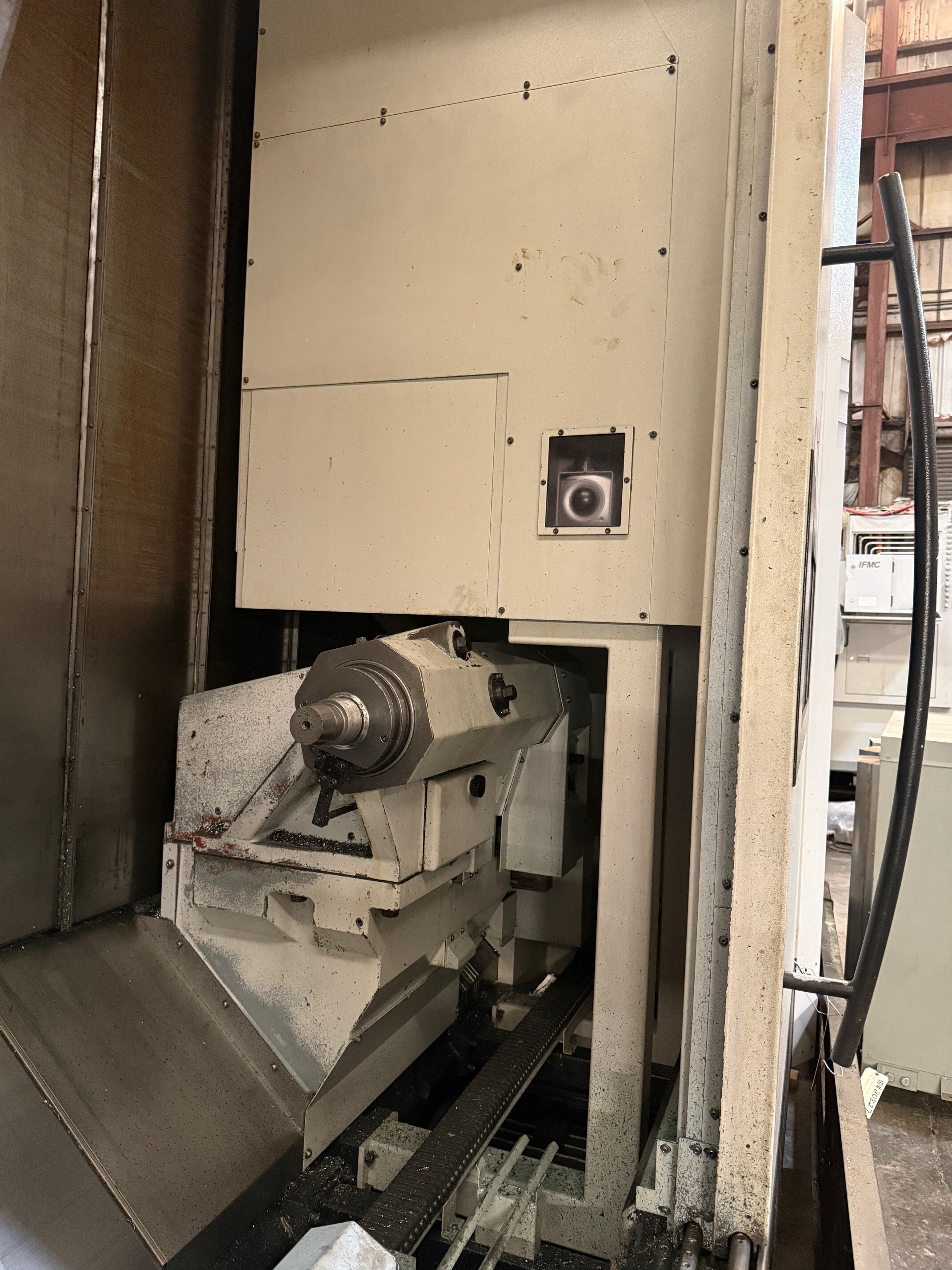

- Tailstock Equipped
- Steadyrest Type: Hydraulic
Included Options:
- Transformer;Splash Guards;Tool Eye
Additional Specs:
- Y-Axis Stroke: 25.59"
- C-Axis: 0.0001° Indexing
- B-Axis 5° Indexing (Coupling Clamp)
- B-Axis 0.0001° / Contouring Cutting
- B-Axis Angle Indexing Turning Function
2 Position Boring Bar Stocker - Automatic Tailstock
Programmable Steady Rest - Table: S-ORIENT
- Tool Standard: CAT
- Coolant System
- Lighting Equipment
- Turning Spindle Oil Chiller
- Manual
- Intelligent Thermal Shield
- Intelligent Safety Shield
- Mazak Voice Advisor
- e-Tower
- Operator Door Interlock
- Signal Indicator Light
- Absolute Position Detection Device (Not Compatible with Scale FB)
- Hydraulic Pressure Guarantee Interlock
- Swivel Operation Panel Specification
- Overload Detection Device
Coolant Type:
- Thru-Spindle Coolant;High Pressure Coolant
Chip Removal:
- Chip Conveyor
See the full specs here: 2006 Mazak Integrex E-650H-II | CNC Multitasking Center
ID # 20850
